Extract Outline

Feature Description

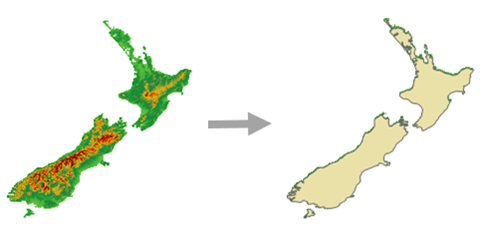

Extracts the contour of valid value ranges from imagery, raster, or mosaic datasets to generate a new dataset.

Feature Entry

  • Data Tab->Data Processing->Raster->Extract Outline.
  • Toolbox->Data Processing->Raster->Extract Outline.

Parameter Description

  • Source Dataset: Specifies the source dataset and its datasource, supporting imagery, raster, and mosaic datasets.
  • Contour Type: Defines the geometry type for output data, supporting line and polygon types.
  • Result Data: Sets the result dataset and its target datasource.
