Instructions for use
At in. My Center supports the management of My Service and My Data resources in SuperMap Online and iPortal accounts.
In the Workspace Manager Online Data panel, select the Super Online or iPortal resource directory. Click My Center to include My Service and My Data in the My Center File catalog, and click a Data Node to display Data Information of the type in the data list. Contents of Default Display My Service are shown in My Data as follows:
 |

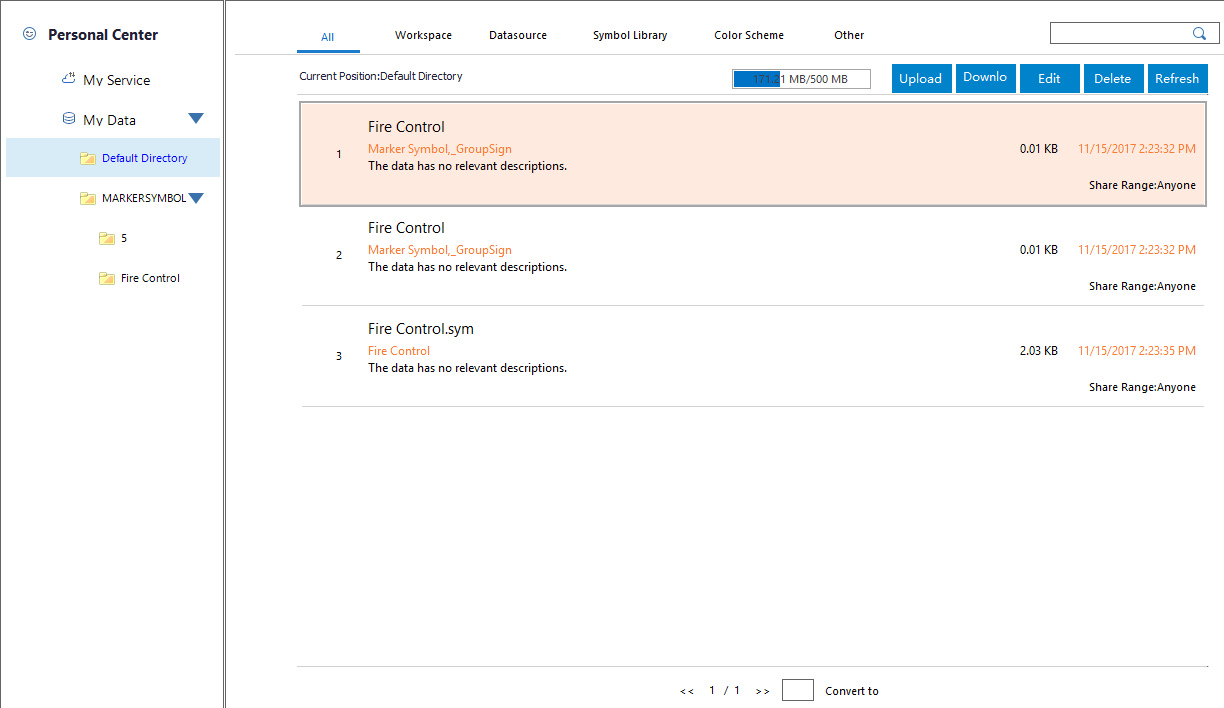

| Figure 1: My Center |
My Service
The data in My Service is the Map Service shared and published by the user through his personal account. Support operations such as viewing, editing and deleting the published Map Service.
- View: My Map Service can be displayed in order by service name, Update Date, and access factor.
- Search: In the search text box, you can Input Data: all or part of the characters of the file, that is, you can search the data files containing these characters in the currently selected directory tree.
- Preview: support to view the specific content of data through preview.
- Edit: Select a single service item in the service list, and click the Edit button on the upper right corner of the data to pop up the Edit My Service dialog box, where you can edit and modify the service name, classification, label, Detail Description and view permission of the Map Service. The function is the same as the Edit function in the upper right corner of the data item.
- Modify Permission: Modify the data viewable range.
- Delete: Select a single service item in the service list, and click the Delete button in the upper right corner of the data to delete the selected Map Service from My Service. The function is the same as the Delete function in the upper right corner of the data item.
- Refresh: Click the Refresh button to refresh the Current Data list.
My Data
The data in My Data is the Workspace, Datasource, symbol library, Color Scheme and other data uploaded to the personal account by the user.
- At the top of the online window, the data is divided into Workspace, Datasource, Symbol Library, Color Scheme, and five other types. Click on the different tab pages, which show data groupings for different categories. Data without classification can be viewed in the tab page of All.
- On the left side of the Online Data window, group My Data by File Name. Select the name of File catalog and right click to New Directory, delete and rename the existing File catalog.
- SuperMap Online and iPortal each provide users with 5GB of online services upload space.
- Data items can be uploaded, downloaded, deleted and refreshed through the toolbar buttons in the upper right corner of the online window.
After confirming the file of Upload Data, the Task Management dialog box will pop up to display the total upload progress of data and the upload progress of single file, and the operation control of the uploaded file can be performed through the pause, cancel, delete and other buttons.
- Upload: supports uploading the data of Workspace, Datasource, symbol library, Color Scheme, etc. locally and currently opened. Click the Upload button to pop up the Upload Data dialog and select the uploaded Data Type in the Data Type field.
- Workspace: Data Type Select Workspace and click the OK button to pop up the Share panel on the right side of the online window, which supports local and currently open Workspaces.
- Datasource: Data Type Select Datasource and click the OK button to pop up the Share panel on the right side of the online window, which supports local and currently opened Datasource. Automatically publish data as REST Data Service when uploading UDB data.
- Symbol Library: When the Marker Symbol Library/Line Symbol Library/Fill Symbol Library is selected for the Data Type, click the OK button to pop up the Symbol Manager dialog box for the corresponding type. Select the symbol or symbol group to be uploaded and execute Share to Online in the Context Menu.
- Color Scheme: When Color Scheme is selected for Data Type, click the OK button to pop up the Color Scheme Manager dialog box, and select the symbol or symbol group to be uploaded. Then execute Share to Online in the Context Menu.
- Others: When Others is selected for Data Type, click the OK button to pop up the File Select dialog box and Supports to upload data in any format.
- Download: Select a single data item in the data list, and click the Download button to download the Online Data locally. The function is consistent with the download function in the upper right corner of the data item.
- Edit: Select a single data item in the data list, and click the Edit button to re-edit the Data Information, including name, category, label, Detail Description, etc.
- Modify Permission: Modify the data viewable range.
- Update: The data content is uploaded again.
- Delete: Select a single data item in the data list, and click the Delete button to delete the selected data from My Data. The function is consistent with the delete function in the upper right corner of the data item.
- Refresh: Click the Refresh button to refresh the Current Data list.
