Setting Vector Layer Properties

Display Control

The Display Control group organizes common parameters for layer properties. For details, refer to Setting Layer Common Properties.

Show Full Line

Show Full Line ensures complete display of line symbol patterns, optimizing line symbol display effects.

When a line object's length is shorter than the symbol cycle length or not an integer multiple of it, the remaining part cannot display fully. Enabling Show Full Line recalculates symbol length through division to achieve approximate alignment with object length.

Example: When using line marker style on line objects shorter than one symbol cycle:

Without Show Full Line With Show Full Line

This feature particularly improves display effects for short lines or layers with complex polylines, enhancing map aesthetics.

Intersection

Line layers often contain intersecting features (e.g., rivers, roads). Unprocessed intersections may appear unprofessional and fail to represent real-world connectivity.

  • Applies to standard line layers and network data layers, excluding CAD layers and route data.
  • Only effective for double-line styles , not single-line styles .

Check Intersection to enable crossing optimization:

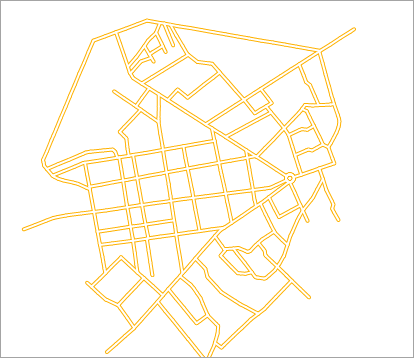

Before Intersection After Intersection

Scale With Map

Controls whether map symbols scale during zoom operations. Applies to point symbols, line symbols, and fill patterns.

Enable Scale With Map to maintain proportional symbol sizing during zoom.

Anti-Alias

Raster displays may show jagged edges (aliasing) on diagonal lines/polygons due to discrete pixel sampling. Anti-aliasing reduces this effect through advanced rendering techniques.

Check Anti-Alias to enable, requiring simultaneous map anti-aliasing activation.

Show Overlap

Controls overlapping object display. Requires Show Overlap at map level.

Show Full Label

Controls complete label display. Requires Show Full Label activation at map level, effective for labels and point symbols.

Scale Reference

Symbol scaling depends on scale reference and current map scale. Symbols enlarge when map scale exceeds reference scale, and shrink when below.

Example: With 1:500,000 reference scale and 30pt symbols, at 1:100,000 scale (5x zoom), symbols display at 150pt.

After enabling Scale With Map, use Set to Current Scale to assign current scale as reference. Clear disables scaling.

Notes:

Disabling scaling when reference scale differs from current scale may alter symbol sizes proportionally.

Minimum Object Size

Sets minimum display size for layer objects. Objects become invisible when maximum bounds dimension falls below threshold during zoom.

Rarefy Display

Optimizes performance for dense geometries by merging/removing nodes within tolerance thresholds.

Example: Tolerance=1px, Threshold=100 nodes. Objects exceeding 100 nodes within 1px range undergo simplification.

Excessive tolerance may disconnect adjacent features due to display-level processing without topological consideration.

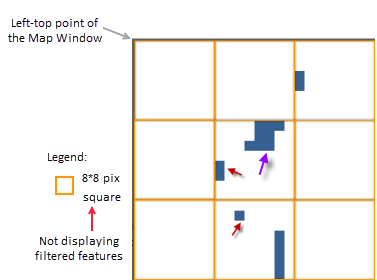

Filter Small Overlapping Objects

Filters objects where both dimensions < minimum size. Within specified tolerance, displays only one representative object.

Example: Tolerance=8px, Minimum Size=8px. Multiple sub-8px objects within 8px grid display only the first-drawn object.

Disabled Filter Process Enabled

Compared with Minimum Size filtering, this maintains at least one object per area unit.

Display Filter

Filters layer display using SQL conditions. Edit directly or via ... button.

Display Order

Controls drawing sequence through numeric fields. Multi-field sorting supported.

Setup steps:

  1. Click ... to open Display Order Field Settings
  2. Click New to add sorting criteria
  3. Select fields and sort direction (Ascending/Descending)
  4. Adjust priority using Bring to Front, Bring to Back, Up, Down

Default drawing order uses SmID ascending without configuration.

Supported for single vector layers or thematic layers.

Field Order Example
SmID Ascending
SmID Descending

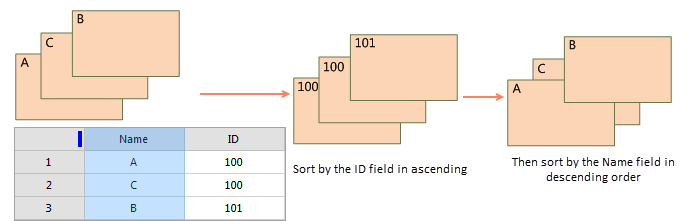

Multi-field sorting example:

Notes:
  • Display Order disables intersection effects
  • Separate multiple fields with commas, e.g., "field1 asc,field2 desc"
  • Settings save to map/workspace for reuse

Join Attribute Table

Links external attribute tables via selected fields for enhanced filtering capabilities.

Set WMS Service Hidden Field

Controls field visibility in published Web Map Services. Hidden fields remain available elsewhere.
