Set the style of the child line

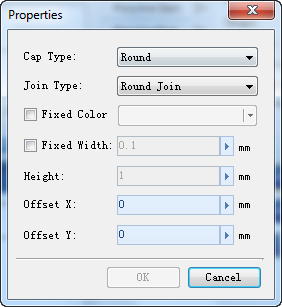

The Style Settings of the subline here refers to the style attribute content of the subline set in the "Attribute" dialog box of the subline, as shown in the following figure, including the Line cap style, Connection style, color, width, and offset of the subline.

Properties dialog box

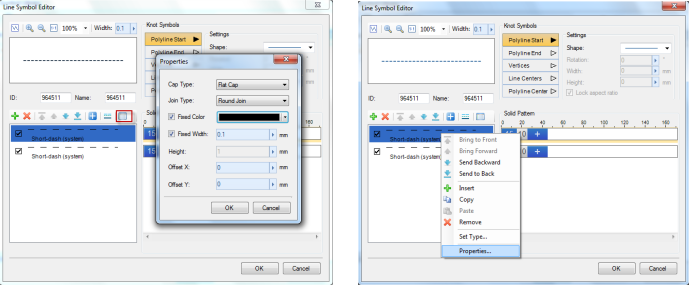

First, select the subline to be styled in the subline list, and then click the Properties button on the Subline Management toolbar; or right-click the selected subline and select the Properties item in the Context Menu to open the Properties dialog box.

Opens the Properties dialog box

Next, you can set the desired line style in the Properties dialog.

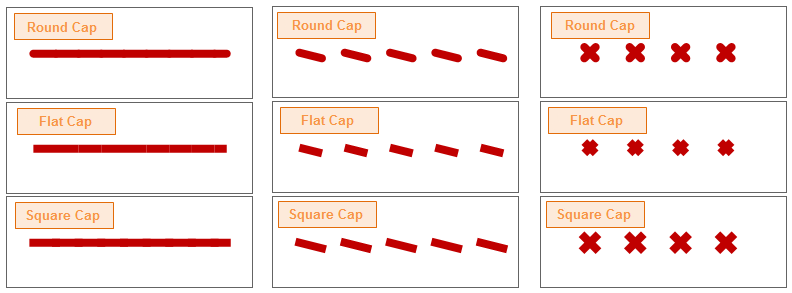

  • Line cap style: The style used to deal with the end of the sub-line, as shown in the following figure, is the effect after setting the line cap style. Here, there are three types of Line cap style: round head, square head and flat head. Effect drawing of
    setting the Line cap style of the sublinks
  • Connection Style: If a certain connection style is set for the child line, Join Type can handle the corner style of the line object's junction when the line object is unsymbolized using the linetype symbol containing the child line. Here, three Join types are provided: Circular Joint, Oblique Angle Joint, and Miter Join.
  • Set sub-line color: When the Fix Color check box is selected, the following color button is available to set the Fix Color of the selected sub-line. When the child line color is fixed, changing the color of the linetype symbol in the Line Symbol Selector has no effect on the child line.
  • Set Line Width of Sub-line: When the Fixed Line Width check box is selected, the following value box is available, and you can set the fixed line width of the selected sub-line. You can either directly enter the value in the value box or click the increase or decrease button on the right to set the value. When a child's lineweight is fixed, modifying the lineweight of a linetype symbol in a Line Symbol Selector is not valid for that child.
  • Set child line offset: Sets the Horizontal offset and Vertical offset of the child line. When setting the value, you can either directly enter the value in the value box, or click the increase or decrease button on the right side to set the value. For Detail Description of child line offsets, see the Child Line Offset section of the 2D linetype symbol composition .

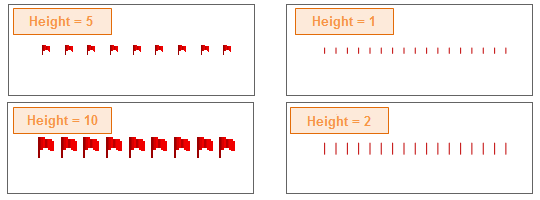

  • Height: When the sub-line is composed of symbol elements, or when the sub-line is composed of short vertical bars, Height is used to set the height of these symbol elements that constitute the sub-line. When setting the value, you can either directly enter the value in the value box, or click the increase or decrease button on the right side to set the value.
    Set the height rendering
  • Start Width: When the line type is rotated to Gradient Line, the start width is used to set the width of the start end of the line segment. When setting the value, you can either directly enter the value in the value box, or click the increase or decrease button on the right side to set the value.
  • End Width: When the line type is rotated to Gradient Line, the start width is used to set the width of the end of the line segment. When setting the value, you can either directly enter the value in the value box, or click the increase or decrease button on the right side to set the value.
