Draw Line to Modify Border

Feature Description

The Draw Line to Modify Border feature allows adjusting the boundary of selected polygon objects based on newly drawn lines.

Available only when a polygon object is selected in an editable layer. The newly drawn line must intersect the polygon boundary at two or more points.

Supported since SuperMap ImageX Pro 11i(2023) version.

Feature Entry

Image Mosaic Tab->Feature Editing Group->Draw Line to Modify Border.

Steps

  1. In the Layer Manager, set the polygon object layer to be modified to Editable state.
  2. Select a polygon object for editing in the map.
  3. Click Image Mosaic Tab->Feature Editing Group->Draw Line to Modify Border button.
  4. Move cursor to the map and draw a line intersecting the polygon object at least twice. Right-click to finish drawing and complete border modification. As shown below:

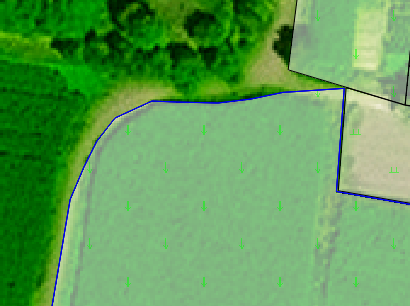

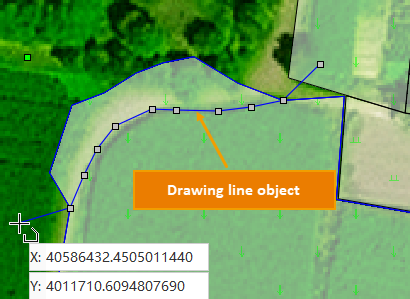

Figure: Drawing a Line Feature Figure: After Completion
