Map Color Fixer
It supports adjusting the color of the video, changing the Display Effects of the video, and enhancing the element characteristics of the video, so that the display mode of the video is richer and the effects are more diverse.
The following methods are provided to adjust the color of the video:
- Support the adjustment of video hue, saturation and brightness;
- Support the adjustment of red, green and blue Color Channel of video, and provide Autumn Color Channel;
- Support the setting of video color filters, and provide filtering methods such as cool tone, warm tone, inversion, sketch, and brightening.
- Predefine color table modes such as AUTUMN, WINTER, RAINBOW, OCEAN, SUMMER, PRING, etc.
Function entrance
- In the Video Enhancement tab-> Map Color Fixer group, operate through the Ribbon menu;
- On the Video Enhancement tab-> Map Color Fixer group-> Settings button, the Video Enhancement Properties Panel appears, and you can operate in the Properties Panel;
Operating instructions
Only when the two function portals are combined, can more Map Color Fixer parameters be set and the Display Effects of the video be improved. The parameters of the Map Color Fixer are described as follows:
- Hue: Adjust the hue of the video; hue is the primary feature of color, and any color other than black, white and gray has hue.
- Brightness: Adjust the brightness of the current video color.
- Saturation: Adjust the saturation of the current video color, which is the purity of the color. The higher the purity, the brighter the performance. The lower the purity, the darker the performance.
- Color Channel: The R, G, and B colors in the Color Adjustment channel are supported to adjust the video color. Note: R, G, and B colors in Color Channel can only be set in the Video Enhancement panel, and Autumn Rhyme Color Channel can only be set in the ribbon menu bar.
- Filter: Through the color filter, it can strengthen and highlight a certain style of the video, so that the video can get a completely different style. The program supports five color filtering effects: cool tone, warm tone, reversal, sketch and bright. Can be set in the ribbon menu or panel.
- Color table: Various color table styles are predefined, including AUTUMN, BONE, JET, WINTER, RAINBOW, OCEAN, SUMMER, SPRING and other eight types. For example, if AUTUMN is selected, the program will render the current video according to the color table of autumn style. Color table needs to be set in the Video Enhancement panel.
- Reset: Support to reset the effect of the adjusted video and restore the original effect of Video Dataset. You can reset a parameter in the ribbon menu bar by clicking the Reset button. To reset the setting in the Video Enhancement panel is to check the check box in front of the parameter. To check the box is to change the parameter. To not check the box is to discard the Parameter Settings.

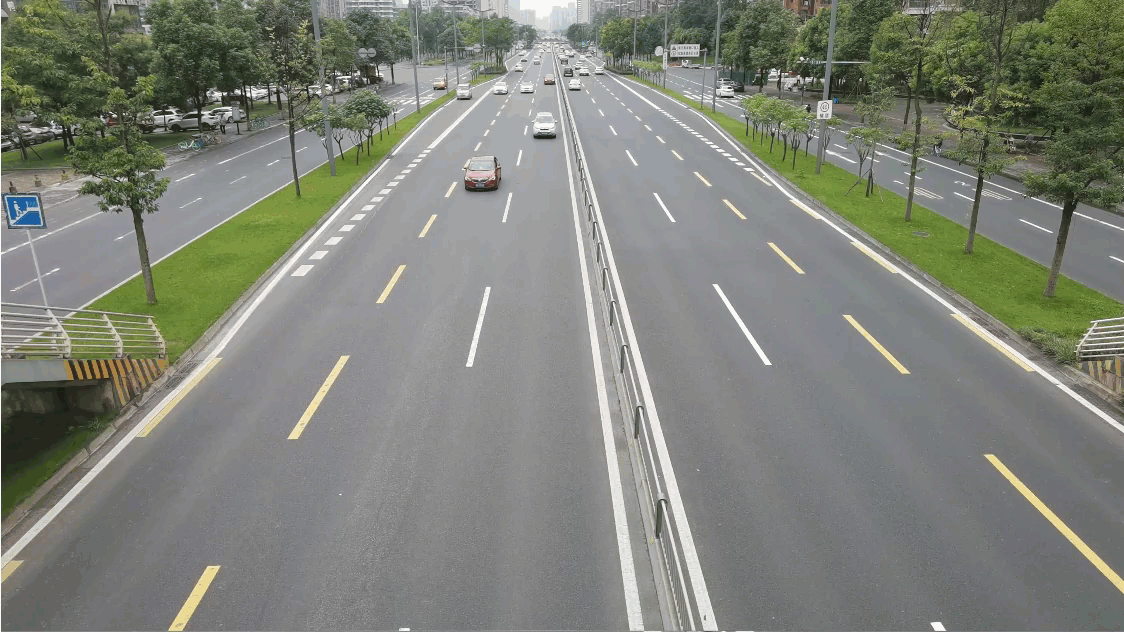

The following figure shows the comparison of video Display Effects before and after setting Autumn Rhyme.
