Select the Voxel Grid layer as the current layer in Layer Manager, and the setting options of Voxel Grid will appear in the Layer Properties "interface.

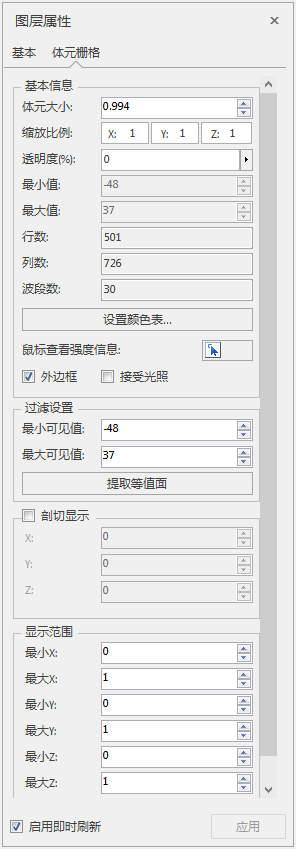

Figure: Voxel GridLayer Properties Settings

Basic Info

• Voxel Size: Set the number of voxels that can be displayed by Voxel Grid by setting the voxel size. Range 0.1,1
• Scale Factor: Voxel Grid is scaled according to the X, Y, Z scaling values.
• Transparency: The transparency of the voxels in the Voxel Grid.
• Max/Min: Max/Min of the Voxel Grid.
• Number of rows/columns/bands: Number of rows/columns/bands of the Voxel Grid.
• Mouse to view the intensity information: Obtain the intensity value of voxel superposition at the point of Voxel Grid. If the transparency of the voxel is opaque, it is the intensity value of a single voxel.
• Outer border: Set whether the outer border of the bounding box is visible.
• ReciveSunLight: Set whether the current layer is ReciveSunLight.

Filter Settings

• Max/Min Visibility: The Max/Min Visibility refers to the intensity value of the Voxel Grid. Only the Voxel Grid between the Max and Min Visibility is displayed.
• Extract Isosurface: Generate Model Data according to the set maximum/minimum visible value Extract Isosurface. For details, see Extract Isosurface.

Display Slice

Set the cut plane position on the X, Y, and Z axes by setting the X, Y, and Z values, all in the 0, 1 range.

Visible Bounds:

Set the Visible Bounds: of the Voxel Grid, and set the Voxel GridVisible Bounds: by setting the maximum/minimum X, Y, Z, whose range is 0,1.
