Multi-section Lofting Body
Feature Description
Generates a parametric multi-section lofted body object based on the specified parameters. A multi-section lofting body is constructed by connecting Section Data arranged in sequence.

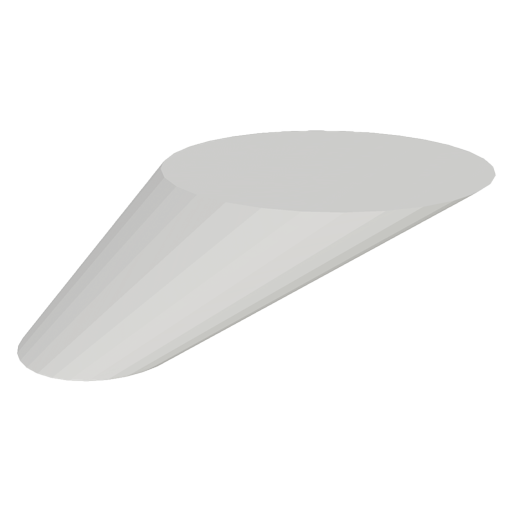

As shown in the figure below, the multi-section lofted body is constructed using a circular cross-section with a radius of 1 meter at position (0,0,0) and a circular cross-section with a radius of 2 meters at position (2,2,2).
Parameter Description
| Parameter Name | Parameter Description | Parameter Type |
|---|---|---|
| Location (Optional) | Set the X/Y/Z coordinate values of the geographic reference point of the multi-section lofted body. | Point3D |
| Transform Matrix (Optional) | Set the matrix for rotating, scaling, and translating the multi-section lofted body. This matrix contains the spatial Position Info of the multi-section lofting body. The specific value is specified by the transformation matrix tool. The and positional parameters are mutually exclusive. When both parameters are set, only the transform matrix parameter takes effect. |
Matrix |
| Section | Enter Section Data to specify with the Circular or Polygonal Section tool. | Object |
Output Result
| Parameter Name | Parameter Description | Parameter Type |
|---|---|---|
| Multi-Section Loft Volume | Parametric Multi-Section Loft Volume Object | CSGNode |
