Introduction to SuperMap Particle System Structure

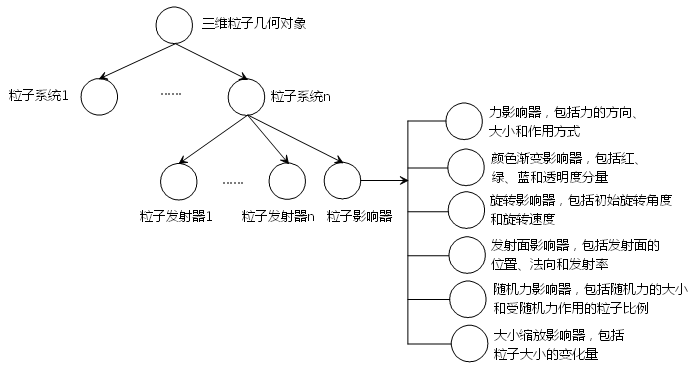

product adjusts the structure of the traditional particle system. Each 3D Particle is represented by the joint action of one or several particle system objects. The structure of 3D Particle is shown in the following figure:
 |
| Figure: Particle Geometry Diagram |
As can be seen from the above figure, 3D Particle contains several particle system objects. Each particle system object contains one or several particle emitters and a particle influencer. The particle emitter is used to control the speed and direction of the emitted particles; The particle influencer influences the path and life cycle of particles according to certain rules to make the particle effect more realistic.
Examples of particle effects
Particle Object painting is available in the Desktop Application. The effect of particle effect display in 3D Scene is realized.
The following are examples of several particle effects provided in the SuperMap desktop system. For the examples, let's briefly understand the structure, parameters, and effect display of the Particle Object provided by SuperMap.
