Band Operation

Feature Description

Band operation performs arithmetic operations on bands within a single image dataset, facilitating remote sensing data processing and parameter inversion across industries. You can either select predefined calculation formulas or directly input custom formulas during operations.

For example, comparing NDVI indices of the same area across different years reveals vegetation coverage changes. As shown in the figures, vegetation coverage was higher in 2013 than in 2018.

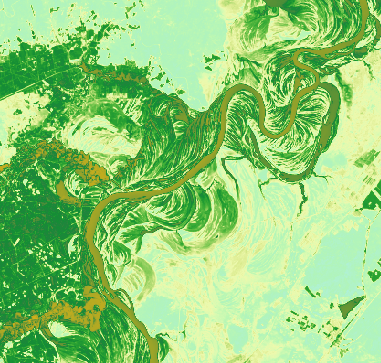

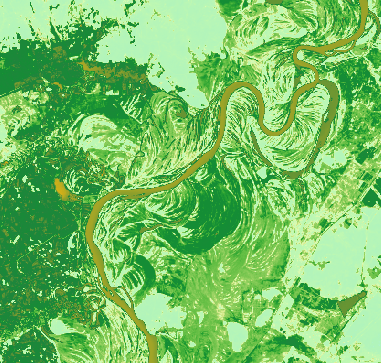

Figure: 2013 NDVI Result Figure: 2018 NDVI Result

Supports image datasets only.

SuperMap ImageX Pro 11i(2024) R2 and later versions support this feature.

Feature Entry

Toolbox->Data Processing->Raster->Band Operation.

Parameter Description

Parameter Description Type
Source Datasource Specifies the datasource containing the input image dataset. Datasource
Source Dataset Specifies the image dataset for band operation. DatasetImage
Calculation Method Provides 29 predefined calculation methods and supports custom formulas. String
Calculation Formula
  • When using predefined methods, displays the corresponding uneditable formula. Parameters below require band/value inputs.

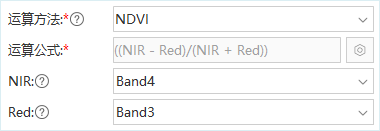

    Example: Selecting NDVI method shows formula "((NIR-Red)/(NIR+Red))" and parameters NIR/Red. Select corresponding bands via dropdown lists.
  • For custom methods: Input formula directly or use formula editor. Represent bands as "Band1, Band2,... Bandn" (e.g., "(Band4 - Band3)/(Band4 + Band3)").
    The formula editor provides band lists, common functions, operators, and import/export capabilities. Toolbar buttons demonstrate function usage.
String
Result Datasource Specifies the output datasource for results. Datasource
Result Dataset Specifies the output dataset name. DatasetGrid

Output

Parameter Description Type
Result Dataset The raster dataset generated from band operation. DatasetGrid

Related Topics

Predefined Calculation Methods
