URI

<geometry_uri>/routelocator[.<format>]

Supported methods

GET, POST, HEAD

Parent resource

geometry

Child resources

routeLocatorResult

Introduction

The routeLocatorResults resource. You can create a routeLocatorResult resource through implementing the POST request on this resource. Supports the following analysis operations:

  • Pass one or more M values to a single route object and return coordinate point information.
  • Pass one or more M values to multiple route objects and return coordinate point information

Supported Methods:

  • GET: Returns a form for the POST request.
  • POST: Returns the created routeLocatorResults resource, including locater point and locater line.
  • HEAD: Checks whether routeLocatorResults resource exists, or whether it can be accessed.

Supported output formats: rjson, json, html, xml.

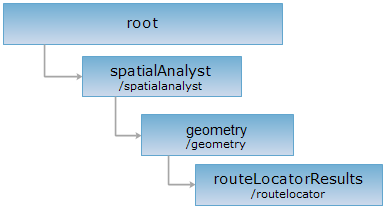

Resource hierarchy

HTTP request methods

Implement the HTTP request on the following URI, where supermapiserver is the server name, with rjson being the output format.

http://supermapiserver:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/geometry/routelocator.rjson

GET request

Gets a form for the POST request.

POST request

Returns the created route locater point (line) analysis result.

Request parameter

Name Type Description
sourceRoute Route [Required]
The route object.
type LocateType [Required]
Type: Point or Line.
measure double The M value of the locater point. Meaningful only when the route object is locater point.
offset double The offset of the locater point. Meaningful only when the route object is locater line. The default value is 0.
isIgnoreGap boolean Wether to ignore the distance among child objects. The default is false, indicating not to ignore the distance among child objects.
startMeasure double The start M value of the locater line. Meaningful only when the route object is locater line.
endMeasure double The end M value of the locater line. Meaningful only when the route object is locater line.

Response structure

The resonse parameters are as follows:

Field Type Description

succeed

 boolean Whether the analysis result have been created successfully.
newResourceID String The ID for the analysis result resource.
postResultType PostResultType

The result type fo the POST request.
newResourceLocation String The URI of the newly created resource.

Response example 1 Pass a single M value to a single route

Suppose we implement the POST request on the routeLocatorResults resource http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/geometry/routelocator.rjson to perform a single route location point operation. The rjson format request body sent is as follows:

{

    "sourceRoute": {

        "type": "LINEM",

        "parts": [4],

        "points": [{

            "measure": 0,

            "y": -6674.466867067760,

            "x": 3817.3527876130100

        },

        {

            "measure": 199.57954019411700,

            "y": -6670.830929417590,

            "x": 3617.806369901500

        },

        {

            "measure": 609.3656478634480,

            "y": -6877.837541432360,

            "x": 3264.1498746678400

        },

        {

            "measure": 936.0174126282960,

            "y": -7038.687780615180,

            "x": 2979.846206068900

        }]

    },

    "type": "POINT",

    "measure": 10,

    "offset": 0,

    "isIgnoreGap": false

}

The result in rjson format returned is as follows:

{

    "succeed": true,

    "newResourceID": "ryw0x19a_478fb6d0164248c79e05fcb955a19dfe",

    "postResultType": "CreateChild",

    "newResourceLocation": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/geometry/routelocator/ryw0x19a_478fb6d0164248c79e05fcb955a19dfe"

}

Response example 2 Pass multiple M values to a single route [New in 2026 Update1]

Suppose we implement the POST request on the routeLocatorResults resource http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/geometry/routelocator.rjson to perform a route location operation for multiple points. The rjson format request body sent is as follows:

[
    {
        "route": {
            "id": 1,
            "type": "LINEM",
            "parts": [
                4
            ],
            "points": [
                {
                    "measure": 0,
                    "y": -6674.46686706776,
                    "x": 3817.35278761301
                },
                {
                    "measure": 199.579540194117,
                    "y": -6670.83092941759,
                    "x": 3617.8063699015
                },
                {
                    "measure": 609.365647863448,
                    "y": -6877.83754143236,
                    "x": 3264.14987466784
                },
                {
                    "measure": 936.017412628296,
                    "y": -7038.68778061518,
                    "x": 2979.8462060689
                }
            ]
        },
        "measures": [
            10,
            100,
            500,
            800
        ]
    }
]

The returned rjson has exactly the same structure as in the example above, and will not be repeated here.

Response example 3 Pass multiple M values to multiple routes [New in 2026 Update1]

Suppose we implement the POST request on the routeLocatorResults resource http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/geometry/routelocator.rjson to perform a batch route location operation for multiple points. The rjson format request body sent is as follows:

[
    {
        "route": {
            "id": 1,
            "type": "LINEM",
            "parts": [
                4
            ],
            "points": [
                {
                    "measure": 0,
                    "y": -6674.46686706776,
                    "x": 3817.35278761301
                },
                {
                    "measure": 199.579540194117,
                    "y": -6670.83092941759,
                    "x": 3617.8063699015
                },
                {
                    "measure": 609.365647863448,
                    "y": -6877.83754143236,
                    "x": 3264.14987466784
                },
                {
                    "measure": 936.017412628296,
                    "y": -7038.68778061518,
                    "x": 2979.8462060689
                }
            ]
        },
        "measures": [
            100,
            200
        ],
        "offsets": [
            0
        ],
        "isIgnoreGap": false
    },
    {
        "route": {
            "id": 2,
            "type": "LINEM",
            "parts": [
                2
            ],
            "points": [
                {
                    "measure": 0,
                    "y": -6600,
                    "x": 4000
                },
                {
                    "measure": 100,
                    "y": -6600,
                    "x": 4100
                }
            ]
        },
        "measures": [
            50,
            100
        ],
        "offsets": [
            0
        ],
        "isIgnoreGap": false
    }
]

The returned rjson has exactly the same structure as in the example above, and will not be repeated here.

HEAD request

Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.

HEAD request can be used to check if the routeLocatorResults resource exists, or if the routeLocatorResults resource can be accessed by clients. It can also determine if the routeLocatorResults resource supports an output format <format> if performed on a URI with .<format> included.
