burstAnalyse

URI

<networkDataName_uri>/burst[.<format>]

Supported methods

GET, HEAD

Parent resource

networkDataName

Introduction

The burst resource represents burst analysis function. By sending a request to burst resource with parameters, you can get critical and normal facility nodes and edges,both upstream and downstream, which are affected by burst point.

Supported Methods:

Supported output formats: rjson, json, html, xml.

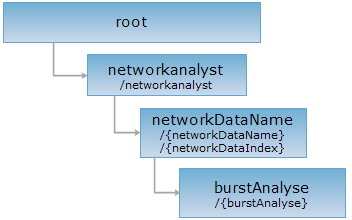

Resource hierarchy

HTTP request methods

Implement the HTTP request on the following URI, where supermapiserver is the server name, with rjson being the output format.

http://supermapiserver:8090/iserver/services/facilityanalyst/rest/networkanalyst/WaterNet@FacilityNet/burst.rjson

GET request

Gets critical facility nodes and edges which affect burst point and normal nodes which are affected by burst point, both upstream and downstream.

Request parameter

Execute a GET request on burst resource. Following arguments need to be included within URI:

Name Type Description
sourceNodeIDs int [Required]
ID array to specify facility nodes.
edgeID int [Required] The edgeID in traffic network analysis. The request URI shall whether includes edgeID or nodeID, but not both at the same time.
nodeID int [Required] The nodeID in traffic network analysis. The request URI shall whether includes nodeID or edgeID, but not both at the same time.
isUncertainDirectionValid boolean Whether edges with uncertain direction is effective. If it is true, the anaysis will keep going down when encounting ucertain direction. Otherwise, it will stop the ansysis in this direction.

Response structure

Execute the burst function. The returned operation result structure is as follows:

Field Type Description
criticalNodes int Critical facility nodes which affect burst point, both upstream and downstream.
edges int Facility edges which affect burst point and which are affected by burst point,both upstream and downstream.
normalNodes int Normal facility nodes which are affected burst point, both upstream and downstream.

Response example

Execute burst analysis using WaterNet@FacilityNet dataset by sending a GET request to:

http://supermapiserver:8090/iserver/services/facility/rest/networkanalyst/WaterNet@FacilityNet/burst.rjson?sourceNodeIDs=%5B84,85%5D&edgeID=310&isUncertainDirectionValid=false

The response result returned is as follows:

{

    "criticalNodes": [],

    "edges": [

        207,

        208,

        209,

        213,

        223,

        224,

        225,

        234,

        280,

        295,

        299,

        310,

        336,

        337,

        344,

        347,

        352,

        354,

        358,

        360,

        365,

        375,

        382,

        387,

        408,

        409,

        410,

        412,

        416,

        417,

        419,

        420,

        422,

        452,

        457,

        459,

        465,

        470,

        487,

        488,

        489,

        492,

        493

    ],

    "normalNodes": []

}

HEAD request

Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information contained in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.

HEAD request can be used to check whether the burst resource exists, or whether the client has the permission to access it. It can also determine if the burst resource supports an output format <format> if performed on a URI with .<format> included.
