Function Description
Used to draw basic maps for current resources.
Supported Data Sources
- iPortal Data Resources
Supported formats: STRUCTUREDDATA
- iPortal Service Resources
Supported formats: REST Data Service, REST Map Service, REST Image Service
- Uploaded Files (via AI Assistant interface)
Supported formats: CSV, Excel, GeoJSON, Shp (supported data format *.zip), maximum 200MB
Note:1. GeoJSON data stored in JSONL format is not supported for upload;
2. Data must be uploaded via the SuperMap iPortal AI Assistant interface. Uploading directly through SuperMap iPortal may cause tool invocation failure.
Function Entry
Two methods to implement basic map drawing.
Enter Basic Map Drawing Command Directly in Dialog
- Chat on the left side of the main interface.
Click Basic Map Drawing Command in "Preset Tasks"
- Preset Tasks -> Map Visualization Tools on the left side of the main interface.
Operation Steps
Enter Basic Map Drawing Command Directly in Dialog
Enter the basic map drawing command in the dialog, e.g., "Use the data named 'Land Use Areas in Beijing-Tianjin' to draw a basic map", then click the Execute button.
Click Basic Map Drawing Command in "Preset Tasks"
In "Map Visualization Tools", click the "Basic Map Drawing" box. The preset command content in the box will be automatically added to the dialog. Then click the Execute button.
 |

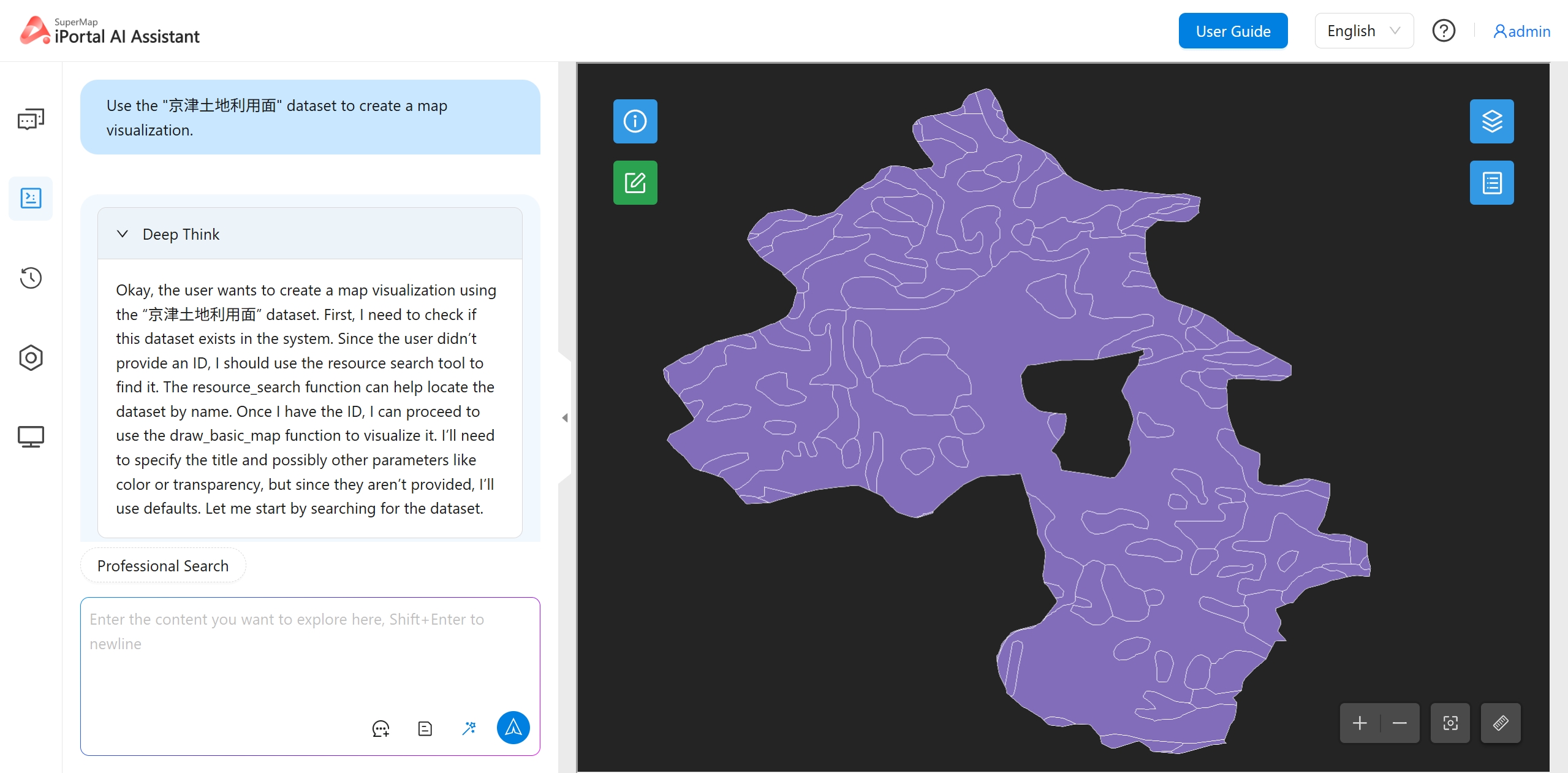

| Figure: Basic Map Drawing |
Note:When using service resources for basic map drawing, explicitly specify the map name or dataset level of the service resource to be visualized in the instruction. Specifying only at the data source level may cause the instruction to fail.
Example instruction: "Visualize the service resource named 'world' in a map".
