URI
<geometryBufferResults_uri>/{geometryBufferResultID}[.<format>]
Supported methods
Parent resource
Introduction
The geometryBufferResult resource is the result resource for buffer analysis.
Supported methods:
- Get: Gets the information about the buffer analysis result.
- HEAD: Checks the existence of the geometryBufferResult resource, or whether the client has the permission to access the geometryBufferResult resource.
Supported output formats: rjson, json, html, xml.

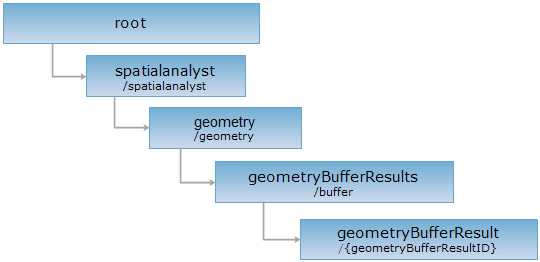

GIS Services Resource Hierarchy
HTTP request methods
Implement the GET request on the following URI, using rjson output format as an example to describe it, where, supermapiserver is the server name..
http://supermapiserver:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/geometry/buffer/1.rjson
GET request
Gets the information about the buffer analysis result.
Response structure
Normal response code(s): 200.
After implementing the GET request, the response parameters are as follows:
| Field | Type | Description |
| succeed | boolean | Whether the buffer analysis is successful. Returns true if successful; otherwise, returns false. |
| image | ImageResult |
The image resulted from the spatial analysis. The result image and the description about the imge are represented. |
| message | String | The related information generated during the buffer analysis process. |
| resultGeometry | Geometry | The result geometry. |
Example usage
After implementing the GET request, the response in rjson format is as follows:
{
"image": null,
"message": null,
"resultGeometry": {
"id": 0,
"parts": [11],
"points": [
{
"x": -77,
"y": 23
},
{
"x": -44.08203932499369,
"y": -51.161984870956616
},
{
"x": 33,
"y": -76.498743710662
},
{
"x": 110.08203932499369,
"y": -51.16198487095663
},
{
"x": 143,
"y": 23
},
{
"x": 124.3733471206735,
"y": 81.12381937190963
},
{
"x": 114.3733471206735,
"y": 95.12381937190963
},
{
"x": 32.99999999999999,
"y": 137
},
{
"x": -48.3733471206735,
"y": 95.12381937190965
},
{
"x": -58.3733471206735,
"y": 81.12381937190963
},
{
"x": -77,
"y": 23
}
],
"style": null,
"type": "REGION"
},
"succeed": true
}
HEAD request
Gets the operations and content format supported by resource.
Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.
The HEAD request helps check the existence of the geometryBufferResult resource and whether it can be accessed by the client. By implementing the HEAD request on the URI, with .<format> appended to the end, we can quickly get to know whether the geometryBufferResult resource supports the representation in <format> or not.
