URI
<datasetThiessenResults_uri>/thiessenpolygon/{datasetThiessenPolygonResultID}[.<format>]
Supported methods
Parent resouce
Introduction
Create the result resource of Thiessen polygon.
Supported Methods:
- GET: Return the description information of the Thiessen polygon created.
- HEAD: Checks if the datasetThiessenPolygonResult resource exists, or if there is permission to access the datasetThiessenPolygonResult resource.
Supported output formats: rjson, json, html, xml.

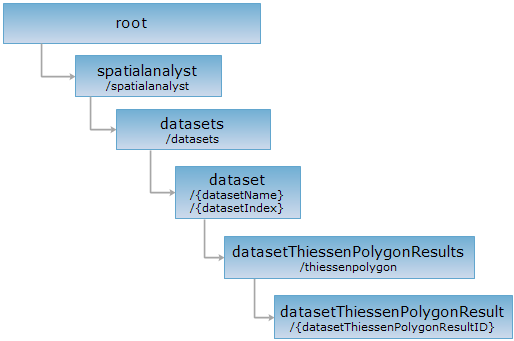

GIS Services Resource Hierarchy
The GIS Services Resource Hierarchy diagram of the resource.
HTTP request methods
Implement the HTTP request on the following URI, where supermapiserver is the server name, with rjson being the output format.
http://supermapiserver:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/thiessenpolygon/wbdsm520_f57129dafda2435980eff26bc0c4cabc.rjson
GET request
Return the description information of the Thiessen polygon created.
Response structure
Description:
| Field | Type | Description |
| datasetName | String | The Thiessen polygon dataset name created. |
| datasourceName | String | The datasource name. |
| regions | Point2D[] | The polygon region array get by analysis. |
Respose example
Peform GET request on the following resource:
http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/thiessenpolygon/wbdsm520_f57129dafda2435980eff26bc0c4cabc.rjson
The respose result returned is as the following:
{
"datasetName": "testThiessen2",
"datasourceName": "Interpolation",
"regions": []
}
HEAD request
Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.
HEAD request can be used to check if the datasetThiessenPolygonResult resource exists, or if the resource can be accessed by clients. It can also determine if the datasetThiessenPolygonResult resource supports an output format <format> if performed on a URI with .<format> included.
