URI
<datasetBufferresults_uri>/{datasetBufferResultID}[.<format>]
Supported methods
Parent resource
Introduction
The datasetBuferResult resource represents a buffer analysis result.
Supported methods:
- GET: Gets the description information about the resource of a buffer analysis result.
- HEAD: Checks if the datasetBufferResult resource exists, or if there is permission to access the datasetBufferResult resource.
Supported output formats: rjson, json, html, xml.

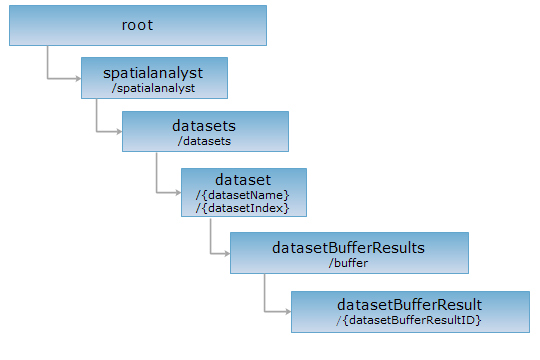

GIS Services Resource Hierarchy
HTTP request methods
Below is an example of performing an HTTP request on a URI with rjson as the output format. supermapiserver in the URI is the name of the server.
http://supermapiserver:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/buffer/1.rjson
GET request
Gets the description information about the resource of a buffer analysis result.
Response structure
Normal response code(s): 200.
Shown below is the response structure after a GET request is performed on the resource:
| Field | Type | Description |
| succeed | boolean | Whether the spatial analysis was successful. |
|
message |
String | The returned message when the spatial analysis failed. |
| dataset | String | The ID of the result dataset. |
| recordset | Recordset | The result record set for storing information about the spatial objects. When a post request is performed on the datasetBufferResults resource, the information on the objects in the result dataset is only displayed if the dataReturnMode attribute of the dataReturnOption field is set to return Recordset. |
Example usage
Below is the returned result in RJSON format after a GET request is performed on the resource (Recordset is not returned in this case according to the parameter settings):
{
"dataset": "SamplePbuffer@Interpolation",
"message": null,
"recordset": null,
"succeed": true
}
HEAD request
Retrieves the operations and output formats supported by the resource.
Returns the same HTTP response header as GET does, but no response entity is included. HEAD request can be used to get metadata from the response message header without transporting the entire response content. Metadata includes information about the media type, character encoding, compression encoding, the length of the entity content, etc.
HEAD request can be used to check if the datasetBufferResult resource exists, or if the resource can be accessed by clients. It can also determine if the datasetBufferResult resource supports an output format <format> if performed on a URI with .<format> included.
