URI
<query_uri>/{JobID}[.<format>]
Supported methods
Parent resource
Introduction
queryJob resource indicates a query job of single object. Gets the detail configuration information of single object query job by ID through sending GET request to queryJob resource.
Supported Methods:
- GET: Gets the detail configuration information of single object query job
- HEAD: Checks whether the queryJob resource exists or whether it has permission to access the resource.
Supported output formats: rjson, json, html, xml.

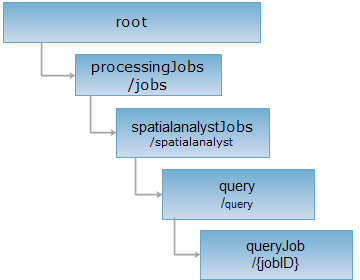

Resource hierarchy
HTTP request methods
Implement the HTTP request on the following URI, where supermapiserver is the server name, with rjson being the output format.
http://supermapiserver:8090/iserver/services/distributedanalyst/rest/v1/jobs/spatialanalyst/query/{jobID}.rjson
GET request
Gets the detail configuration information of single object query job
Response structure
Execute a GET request on the queryJob resource. The representation structure for the returned resource is like this:
| Field | Type | Description |
| id | String | Application ID. |
| state | Jobstate | The task status. Including execution status, start time, time consuming, and so on. |
| setting | JobSetting | Lists the detail information of current task. |
Response example
Sending GET request to queryJob resource http://supermapiserver:8090/iserver/services/distributedanalyst/rest/v1/jobs/spatialanalyst/query/b604dfb0_fa16_44ff_b79f_426638ce34ca.rjson, the description for the returned rjson is:
{
"id": "b604dfb0_fa16_44ff_b79f_426638ce34ca",
"setting": {
"DEFAULT_MASTER_ADRESS": "local[*] ",
"analyst": {
"datasetQuery": "Line",
"inputQuery": "F:\\20170527_bsp.jar\\test\\data_toIserver.udb",
"mode": "CONTAIN",
"numSlices": "20"
},
"appName": "query",
"args": [
"--inputSource",
"F:\\20170527_bsp.jar\\test\\data_toIserver.udb",
"--datasetSource",
"Region",
"--numSlices",
"20",
"--inputQuery",
"F:\\20170527_bsp.jar\\test\\data_toIserver.udb",
"--datasetQuery",
"Line",
"--mode",
"CONTAIN",
"--outputResult",
"F:\\20170621\\supermapiserver\\webapps\\iserver\\processingResultData\\Analyst\\udbs\\213b0cd1-a7db-474f-afe3-242787c31c05",
"--datasetResult",
"analystResult"
],
"contextSetting": null,
"input": {
"datasetSource": "Region",
"inputSource": "F:\\20170527_bsp.jar\\test\\data_toIserver.udb"
},
"mainClass": "com.supermap.bsp.main.SpatialQueryGeoMain",
"output": {
"cacheName": null,
"cacheType": null,
"datasetResult": "analystResult",
"outputResult": "F:\\20170621\\supermapiserver\\webapps\\iserver\\processingResultData\\Analyst\\udbs\\213b0cd1-a7db-474f-afe3-242787c31c05"
},
"serviceInfo": {
"targetDataPath": "F:\\20170621\\supermapiserver\\webapps\\iserver\\processingResultData\\Analyst\\b604dfb0_fa16_44ff_b79f_426638ce34ca",
"targetServiceInfos": [
{
"serviceAddress": "http://supermapiserver:8090/iserver/services/data-spatialQueryGeo5/rest",
"serviceType": "RESTDATA"
},
{
"serviceAddress": "http://supermapiserver:8090/iserver/services/map-spatialQueryGeo5/rest",
"serviceType": "RESTMAP"
}
]
},
"serviceRoot": "http://supermapiserver:8090/iserver/services/"
},
"state": {
"elapsedTime": 7373,
"endState": true,
"endTime": 1498027044443,
"errorMsg": null,
"errorStackTrace": null,
"publisherelapsedTime": 2148,
"runState": "FINISHED",
"startTime": 1498027034501
}
}
HEAD request
Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.
HEAD request can be used to check if the queryJob resource exists, or if the queryJob resource can be accessed by clients. It can also determine if the queryJob resource supports an output format <format> if performed on a URI with .<format> included.
