URI
<summaryRegion_uri>/{JobID}[.<format>]
Supported methods
Parent resource
Introduction
The summaryRegionJob resource represents the query operation on a single object. By executing a GET request on the summaryRegionJob resource, you can obtain the detailed configuration information of the summary work in a region by the ID ({jobID}).
Supported Methods:
- GET: GET description.
- HEAD: Checks whether the summaryRegionJob resource exists or whether it has permission to access the resource.
Supported output formats: rjson, json, html, xml.

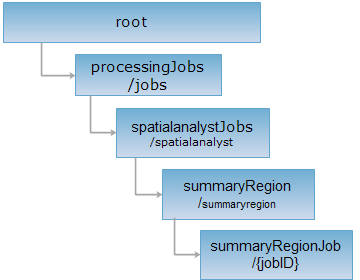

Resource hierarchy
HTTP request methods
Implement the HTTP request on the following URI, where supermapiserver is the server name, with rjson being the output format.
http://supermapiserver:8090/iserver/services/distributedanalyst/rest/v1/jobs/spatialanalyst/summaryregion/{jobID}.rjson
GET request
Get the detailed configuration information of the summary work in a region.
Response structure
Execute a GET request on the summaryRegionJob resource. The representation structure for the returned resource is like this:
| Field | Type | Description |
| id | String | Application ID. |
| state | Jobstate | Task status. Including the implementation state, starting and ending time, consuming time and so on. |
| setting | JobSetting | List the detailed information of current single object query analysis task. |
Response example
Execute GET request for summaryRegionJob resource: http://supermapiserver:8090/iserver/services/distributedanalyst/rest/v1/jobs/spatialanalyst/summaryregion/48508e0b_d4b5_4278_bbde_9e092fe85618.rjson. The returned representation in rjson format is as follows:
{
"id": "48508e0b_d4b5_4278_bbde_9e092fe85618",
"setting": {
"DEFAULT_MASTER_ADRESS": "local[*] ",
"analyst": {
"bounds": "-74.050,40.650,-73.850,40.850",
"fieldResultName": "Sum_LocationIDStandard",
"fields": "LocationID",
"meshSize": "10",
"meshSizeUnit": "Meter",
"meshType": "0",
"standardSummaryFields": "true",
"statisticModes": "Sum",
"sumShape": "true",
"weightedSummaryFields": "false"
},
"appName": "summaryWithinMesh",
"args": [
"--input",
"{\"sliceNum\":20,\"type\":\"udb\",\"info\":[{\"server\":\"E:\\\\data\\\\test\\\\processing.udb\",\"datasetNames\":[\"singleRegion_R\"]}]}",
"--meshType",
"square",
"--meshSize",
"10",
"--sumShape",
"true",
"--bounds",
"-74.050,40.650,-73.850,40.850",
"--meshSizeUnit",
"Meter",
"--standardSummaryFields",
"[LocationID,Sum,Sum_LocationIDStandard]",
"--output",
"{\"server\":\"F:\\\\iserver-code\\\\iserver\\\\etc\\\\iserver-debug\\\\src\\\\test\\\\resources\\\\iserver\\\\processingResultData\\\\Analyst\\\\udbs\\\\14ec67de-c7a5-42e0-9fae-0b9f65b7bf38\",\"datasetName\":\"analystResult\",\"type\":\"udb\"}"
],
"contextSetting": null,
"input": {
"datasetInfo": {
"available": true,
"bounds": "Left=-74.0012189965531,Bottom=40.691422739248694,Right=-73.84588071508979,Top=40.84578668020041",
"datasetName": "singleRegion_R",
"datasetType": "REGION",
"epsgCode": 4326,
"name": "test_processing_singleRegion_R",
"readOnly": false,
"type": "UDB",
"url": "E:\\data\\test\\processing.udb"
},
"datasetName": "test_processing_singleRegion_R",
"numSlices": 0
},
"mainClass": "com.supermap.bsp.main.SummaryWithinMeshMain",
"output": {
"datasetName": "analystResult",
"outputPath": "F:\\iserver-code\\iserver\\etc\\iserver-debug\\src\\test\\resources\\iserver\\processingResultData\\Analyst\\udbs\\14ec67de-c7a5-42e0-9fae-0b9f65b7bf38"
},
"serviceInfo": {
"targetDataPath": "F:\\iserver-code\\iserver\\etc\\iserver-debug\\src\\test\\resources\\iserver\\processingResultData\\Analyst\\48508e0b_d4b5_4278_bbde_9e092fe85618",
"targetServiceInfos": [
{
"serviceAddress": "http://supermapiserver:8090/iserver/services/data-summaryRegion73/rest",
"serviceType": "RESTDATA"
},
{
"serviceAddress": "http://supermapiserver:8090/iserver/services/map-summaryRegion64/rest",
"serviceType": "RESTMAP"
}
]
},
"serviceRoot": "http://supermapiserver:8090/iserver/services/",
"type": "SUMMARYMESH"
},
"state": {
"elapsedTime": 48120,
"endState": true,
"endTime": 1499671184678,
"errorMsg": null,
"errorStackTrace": null,
"publisherelapsedTime": 4970,
"runState": "FINISHED",
"startTime": 1499671126724
}
}
HEAD request
Returns the same HTTP response header as the GET request, but does not have the response entity. It can get the metadata information in the response header without transferring the whole response content. Metadata information includes media type, character encoding, compression encoding, entity content length, and so on.
The HEAD request can be used to determine whether the summaryRegionJob resource exists or whether the client has authority to access the summaryRegionJob resource. It can quickly determine whether the summaryRegionJob resource supports the representation in <format> format by performing HEAD request on URI with <format>.
