URI

<layer_uri>/visible[.<format>]

Supported methods

GET, HEAD

Parent resource

layer

Introduction

As a child resource of the layer resource, the visible resource is used to identify if the layer is visible.

Supported methods

  • GET: Gets the description of the visibility of the layer.
  • HEAD: Verifies that the visible resource exists and it has the permission to access the visible resource.

Supported output formats: rjson, json, html, xml.

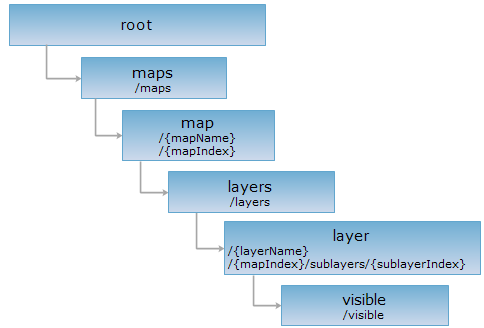

GIS Services Resource Hierarchy

resources.htm maps.htm map.htm layer.htm layers.htm visible.htm

HTTP request methods

Here is an example of performing an HTTP request on the following URI, with rjson as the output format. In the URI, supermapiserver is the name of the server, "WorldMap" is the map name (mapName),  Capitals@World is a layer of Map "WorldMap" (layerName), Capitals@World@@WorldMap represents a sublayer of  World layer. Therefore, the URI represents the visible resource of the Capitals@World layer.

http://supermapiserver:8090/iserver/services/map-world/rest/maps/WorldMap/layers/Capitals@World@@WorldMap/visible.rjson

GET Request

Gets the description of the layer visibility. Returning true: visible, false: invisible.

Request parameters

Field Type Definition
_cache boolean [Optional parameters]
Whether to use cache, the default is True. False means close all the caches.

Response structure

Implement the GET request on the visible resource and you will get a boolean value that indicates if the layer is visible.

Example of response

Implement the GET request on the visible resource with http://supermapiserver:8090/iserver/services/map-world/rest/maps/WorldMap/layers/Capitals@World@@WorldMap/visible.rjson and you will get a boolean value indicating whether the layer Capitals@world is visible as shown below.

true



HEAD request

Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.

HEAD request can be used to check if the visible resource exists, or if the resource can be accessed by clients. It can also determine if the visible resource supports an output format <format> if performed on a URI with .<format> included.
