URI
<tileService_uri>/jobs[.<format>]
Supported methods
Parent resource
Child resources
Introduction
The entrance resource to distributed caching, which supports creating new tiling tasks.
Supported Methods:
- GET: Gets the representation of the tileJobs resource, that is, creating the entrance to distributed caching task and returning the tiling task list.
- POST: Creating new tiling task.
- HEAD: Checks whether the tileJobs resource exists or whether it has permission to access the resource.
Supported output formats: rjson, json, html, xml.

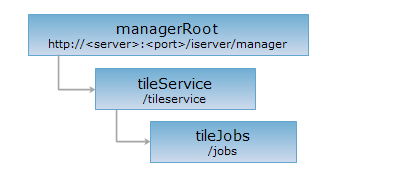

Resource hierarchy
HTTP request methods
Implement the HTTP request on the following URI, where supermapiserver is the server name, with rjson being the output format.
http://supermapiserver:8090/iserver/manager/tileservice/jobs.rjson
GET request
Gets the tiling task list.
Response structure
Returns the tiling task list, including the information for each tiling task. The information for each tiling task is as follows:
| Field | Type | Description |
| id | String | The tiling task ID. |
| state | JobState | The current status for the tiling task. |
| info | JobInfo | The basic information of the tiling task. |
Response example
The rjson format response result returned after implementing the GET request on the tileJobs resource http://localhost:8090/iserver/manager/tileservice/jobs.rjson to return tiling task list is as follows:
POST request
Creates new tiling task.
Request parameters
The structure of the request body parameters is as follows:
| Name | Type | Description |
| dataConnectionString | String | The connection information for the data to be tiled. The service component name can be directly passed in, map-china400 for instance. |
| mapName | String | The name of the map to be tiled. |
| tileSize | TileSize | The size of the tile. The default value is SIZE_256. |
| format | OutputFormat | The output cache format, PNG for instance. |
| transparent | boolean | Whether the tile is transparent. The default is False. |
| scaleDenominators | double[] | The collection of denominators for tile scales, ["1000000", "2000000"] for instance. |
| originalPoint | Point2D | The original point for tile index. The default is the top left of the map. |
| epsgCode | int | The coordinates system for tiling. While not specified, the original coordinates system will be used. |
| cacheBounds | Rectangle2D | The cache extent, [0,0,180,90]. If not specified, the default will be the full extent of the map. |
| storageID | String | The storage configuration ID. |
| storeConfig | TileSourceInfo | Tile storage configuration. |
| createNewTileVersion | boolean | Whether to create new tile version. |
| parentTileVersion | String | The parent version of the version of tiles to be created. null indicates to create new version based on the mostly update version. |
| tileType | TileType | Tile type |
| utfGridParameter | UTFGridJobParameter | Properties tiles configuration parameter. When the type of tiles is UTFGrid, this parameter is invalid. |
| vectorParameter | VectorJobParameter | Vector tiles configuration parameter. When the type of tiles is Vector, this parameter is invalid. |
Response structure
| Field | Type | Description |
| succeed | String | Whether tiling is successful. |
| newResourceID | String | The ID of the created tile task resource. |
| customResult | TileJob | The related information of the created tile task resource. |
| newResourceLocation | String | The address of the created tile task resource. |
| postResultType | enum | The result type of the POST request. "CreateChild" indicates creating new child resource. |
Response example
Suppose we implement the POST request on http://localhost:8090/iserver/manager/tileservice/jobs.rjson to create a new tile task, the rjson request body is as follows:
{
"dataConnectionString": "map-china400",
"mapName": "China",
"tileSize": "SIZE_256",
"format": "PNG",
"transparent": false,
"scaleDenominators": ["1200000"],
"cacheBounds": {
"left": "-20037508.342789244",
"bottom": "-20037508.34278914",
"right": "20037508.342789244",
"top": "20037508.342789095"
},
"storageID": "aa",
"storeConfig": {
"fdhtGroups": [
["192.168.122.44:11411"]
],
"type": "FastDFS",
"fdfsTrackers": ["192.168.122.44:22122"]
},
"originalPoint": null,
"epsgCode": -1,
"tileType":"Image"
}
The response result in rjson format returned is as follows:
{
"customResult": {
"id": "c9575f3c-c417-4ef9-a4da-9b0aa2c68d32",
"info": {
"actualTileVersion": "119df1b3-03f8-46de-b194-4f4e0473c9d8",
"cacheBounds": {
"bottom": -2.003750834278914E7,
"left": -2.0037508342789244E7,
"leftBottom": {
"x": -2.0037508342789244E7,
"y": -2.003750834278914E7
},
"right": 2.0037508342789244E7,
"rightTop": {
"x": 2.0037508342789200.0037508342789244E7,
"y": 2.0037508342789100.003750834278914E7
},
"top": 2.0037508342789095E7
},
"createNewTileVersion": false,
"dataConnectionString": "../../samples/data/China400/China400.smwu",
"epsgCode": -1,
"format": "PNG",
"mapName": "China",
"originalPoint": {
"x": -2.0037508342789244E7,
"y": 2.0037508342789100.003750834278914E7
},
"parentTileVersion": null,
"refMapRestAdress": "http://localhost:8090/iserver/services/map-china400/rest/maps/China",
"resolutions": [317.50000000000000],
"scaleDenominators": [1200000],
"storageID": "aa",
"storeConfig": {
"fdfsTrackers": ["192.168.122.44:22122"],
"fdhtGroups": [
["192.168.122.44:11411"]
],
"type": "FastDFS"
},
"tileSize": "SIZE_256",
"transparent": false,
"tileType":"Image"
},
"state": {
"analystBlankPercentage": 0,
"buildingScale": {
"completed": 0,
"completedBytes": 0,
"completedRegion": null,
"failedRegion": null,
"matrixes": [{
"columnCount": 494,
"rowCount": 494,
"startingIndex": {
"columnIndex": 0,
"rowIndex": 0
}
}],
"nextIndex": {
"columnIndex": 0,
"rowIndex": 0
},
"scaleDenominator": 1200000,
"total": 244036,
"totalMatrix": null,
"workerBuildingInfos": null
},
"completed": 0,
"completedBytes": 0,
"completedScale": [],
"deployedWorkerId": [],
"elapsedTime": 0,
"masterAddress": "http://localhost:8090/iserver/services/tilemaster",
"remainTime": 0,
"runState": "BUILDING",
"scaleConfigs": [{
"cacheRegions": [],
"excludeRegions": [],
"scaleDenominator": 1200000,
"tileBoundsHeight": "81279.99999999999",
"tileBoundsWidth": "81279.99999999999"
}],
"scaleInfos": [{
"completed": 0,
"completedBytes": 0,
"completedRegion": null,
"failedRegion": null,
"matrixes": [{
"columnCount": 494,
"rowCount": 494,
"startingIndex": {
"columnIndex": 0,
"rowIndex": 0
}
}],
"scaleDenominator": 1200000,
"total": 244036,
"totalMatrix": null,
"workerBuildingInfos": null
}],
"speedPerSecond": 0,
"tasks": [],
"tasksToRetry": [],
"tileMatrixEdgeCount": 20,
"total": 244036
}
},
"newResourceID": "c9575f3c-c417-4ef9-a4da-9b0aa2c68d32",
"newResourceLocation": "http://localhost:8090/iserver/manager/tileservice/jobs/c9575f3c-c417-4ef9-a4da-9b0aa2c68d32.rjson",
"postResultType": "CreateChild",
"succeed": true
}
Access the resource URI of the generated child resource http://localhost:8090/iserver/manager/tileservice/jobs/c9575f3c-c417-4ef9-a4da-9b0aa2c68d32, you can check the status of the created tile task. For details, please refer to tileJob.
HEAD request
Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content. The meta-information includes the media-type, content-encoding, transfer-encoding, content-length, etc.
HEAD request can be used to check if the tileJobs resource exists, or if the tileJobs resource can be accessed by clients. It can also determine if the tileJobs resource supports an output format <format> if performed on a URI with .<format> included.
