URI
<themes_uri>/{name}[.<format>]
Supported Methods
Parent Resource
Introduction
The themeSetting resource represents the specific configuration for a particular theme style of iPortal. The iPortal theme style defines the foreground / background colors of site-wide UI components such as the navigation bar, sidebar, footer, and buttons.
Supported Methods:
- GET: Retrieve the specified iPortal theme style configuration.
- PUT: Modify the specified iPortal theme style.
- HEAD: Check whether the themeSetting resource exists, or whether the permission can access the themeSetting resource.
Supported output formats: JSON.

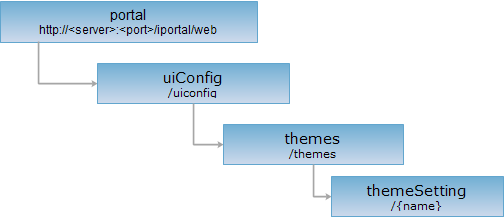

Resource hierarchy
HTTP Request Method
Perform an HTTP request on the following URI. The json output format is used as an example, where supermapiportal is the server name.
http://supermapiportal:8190/iportal/web/uiconfig/themes/{name}.json
GET Request
Retrieve the specified iPortal theme style configuration.
Response Structure
The iPortal theme style configuration consists of the following fields:
| Field | Type | Description |
| header | String | The theme style of the navigation bar. |
| resourceHeader | String | The theme style of the resource center secondary navigation bar. |
| resourceAside | String | The theme style of the resource center sidebar. |
| body | String | The theme style of the page body. |
| button | String | The theme style of buttons. |
| footer | String | The theme style of the footer. |
Response Example
Perform a GET request on the themeSetting resource: http://localhost:8190/iportal/web/uiconfig/themes/ThemeSetting_blue.json. The returned json representation is as follows:
{
"themeSetting":{
"header":{
"backgroundColor":"rgb(255, 255, 255)",
"color":"rgb(51, 51, 51)",
"hoverBackgroundColor":"#efefef",
"hoverMenuFontColor":"#0161b7",
"hoverLoginFontColor":"#0161b7"
},
"resourceHeader":{
"backgroundImage": "{webUiRoot}reaource-center-img/banner-map.png",
"backgroundColor": "#ffffff",
"color":"#ffffff",
"hoverBannerFontColor":"#ffffff"
},
"resourceAside":{
"borderColor": "#E5E5E5",
"activeBackgroundColor": "#f4f4f4"
},
"body":{
"backgroundColor":"#f4f4f4"
},
"button":{
"primaryColor":"#127fdc",
"textColor":"rgba(0, 0, 0, .65)",
"borderColorBase": "#d9d9d9"
},
"footer":{
"backgroundColor": "rgb(255, 255, 255)",
"color":"rgb(51, 51, 51)",
"borderColor":"#f4f4f4"
}
}
}
PUT Request
Modify the specified iPortal theme style.
Request Parameters
When sending a request, you need to pass the following parameters in the request body:
| Name | Type | Description |
| header | String | The theme style of the navigation bar. |
| resourceHeader | String | The theme style of the resource center secondary navigation bar. |
| resourceAside | String | The theme style of the resource center sidebar. |
| body | String | The theme style of the page body. |
| button | String | The theme style of buttons. |
| footer | String | The theme style of the footer. |
Response Structure
The returned resource representation structure is as follows:
| Field | Type | Description |
| succeed | boolean | Whether modifying the theme style is successful. |
| error | HttpError | Error information. If the modification is successful, this field is not returned. |
Response Example
Modify the site-wide theme style of iPortal. Perform a PUT request on the themeSetting resource: http://localhost/iportal/web/uiconfig/themes/ThemeSetting_blue.json. The request body is as follows:
{
"themeSetting": {
"header": {
"backgroundColor": "#181818",
"color": "#ffffff",
"hoverBackgroundColor": "#3E3D3D",
"hoverMenuFontColor": "#ffffff",
"hoverLoginFontColor": "#FB6800"
},
"resourceHeader": {
"backgroundImage": "",
"backgroundColor": "#ffffff",
"color": "rgb(51, 51, 51)",
"hoverBannerFontColor": "#FB6800"
},
"resourceAside": {
"borderColor": "#E5E5E5",
"activeBackgroundColor": "#FFF0E6"
},
"body": {
"backgroundColor": "#f4f4f4"
},
"button": {
"primaryColor": "#FB6800",
"textColor": "rgba(0, 0, 0, .65)",
"borderColorBase": "#d9d9d9"
},
"footer": {
"backgroundColor": "#333333",
"color": "#999999",
"borderColor": "#FB6800"
}
}
}
The returned json representation is as follows:
{"succeed": true}
HEAD Request
Returns the same HTTP response headers as a GET request, but without a response entity. You can obtain the metadata information contained in the response message headers without transferring the entire response content. The metadata information includes media type, character encoding, compression encoding, entity content length, etc.
A HEAD request can be used to determine whether the themeSetting resource exists, or whether the client has permission to access the themeSetting resource. By performing a HEAD request on a URI with .<format> appended, you can also quickly determine whether the themeSetting resource supports the <format> representation.
See
