URI
<map_uri_>/map[.<format>]
Supported Methods
Parent Resource
Description
The WebMap resource is the content resource of a map.
Supported Methods:
- GET: Get the content of a specified map.
- PUT: Modify the content of a specified map.
- HEAD: Check whether the WebMap resource exists or whether the permissions allow access to the WebMap resource.
Supported output formats: RJSON, JSON.

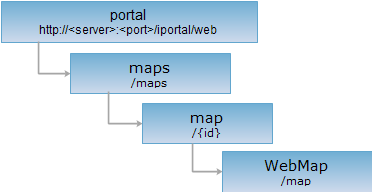

Resource hierarchy
HTTP Request Methods
Perform HTTP requests on the following URI. The rjson output format is used as an example, where supermapiportal is the server name.
http://supermapiportal:8190/iportal/web/maps/{id}/map.rjson
GET Request
Get the content of a specified map.
Response Structure
Perform a GET request on the WebMap resource. The returned RJSON representation of map content conforms to the WebMap specification. For more information about WebMap, see: WebMap Specification Provided by SuperMap.
| Property | Description |
| title | The name of the map. |
| description | The map description. |
| extent | The extent of the map. |
| level | The zoom level of the map. |
| center | The center point of the map. |
| baseLayer | The base layer information of the map. |
| layers | The layer information of the map. |
| projection | The projection coordinate system of the map. |
| version | The version number of the map. |
Response Example
Perform a GET request on the WebMap resource: http://localhost:8190/iportal/web/maps/3/map.rjson. The rjson format response is as follows:
{
"extent": {
"leftBottom": {
"x": 7851611.545458,
"y": 2436200.9655012
},
"rightTop": {
"x": 14896048.07222,
"y": 6320424.9948408
}
},
"level": 5,
"center": {
"x": 11373829.808839,
"y": 4378312.980171
},
"baseLayer": {
"layerType": "TILE",
"visible": true,
"name": "China",
"url": "http://localhost:8080/iserver/services/map-china400/rest/maps/China"
},
"description": "",
"projection": "EPSG:3857",
"title": "China",
"version": "1.0"
}
PUT Request
Modify the content of a specified map.
Request Parameters
When sending a request, the request body must contain RJSON data that conforms to the WebMap specification. For more information about WebMap, see: WebMap Specification Provided by SuperMap.
| Property | Description |
| title | The name of the map. |
| description | The map description. |
| extent | The extent of the map. |
| level | The zoom level of the map. |
| center | The center point of the map. |
| baseLayer | The base layer information of the map. |
| layers | The layer information of the map. |
| projection | The projection coordinate system of the map. |
| version | The version number of the map. |
Response Structure
The returned resource representation structure is as follows:
| Field | Type | Description |
| succeed | Boolean | Whether the map modification was successful. |
| error | HttpError | Error information. This field is not returned if the map modification is successful. |
Response Example
To modify the map content, perform a PUT request on the WebMap resource: http://localhost:8190/iportal/web/maps/4/map.rjson. The request body is as follows:
{
"version": "1.0",
"title": "Untitled Map",
"description": "",
"projection": "EPSG:3857",
"center": {
"x": 2191602.47499257,
"y": 4050551.00288805
},
"level": 2,
"extent": {
"leftBottom": {
"x": -20037508.3427892,
"y": -20037508.3427892
},
"rightTop": {
"x": 20037508.3427892,
"y": 20037508.3427892
}
},
"baseLayer": {
"layerType": "TIANDITU_VEC_3857",
"name": "Tianditu",
"labelLayerVisible": true
},
"layers": [
{
"layerType": "TILE",
"name": "China_4326",
"visible": true,
"url": "http://localhost:8080/iserver/services/map-china400/rest/maps/China_4326"
},
{
"layerType": "MARKER",
"name": "Untitled\r\nmarker layer1",
"visible": true,
"serverId": "853160733"
}
]
}
The rjson format response is as follows:
{
"succeed": true
}
HEAD Request
Returns the same HTTP response headers as the GET request, but without the response entity. Metadata information contained in the response headers can be retrieved without transferring the entire response content. Metadata information includes media type, character encoding, compression encoding, entity content length, etc.
A HEAD request can be used to check whether the WebMap resource exists or whether the client has permission to access the WebMap resource. By performing a HEAD request on the URI with .<format> appended, you can also quickly determine whether the WebMap resource supports the <format> format representation.
