URI
<map_uri>/attributes[.<format>]
Supported Methods
Parent Resource
Description
The mapThumbnail resource is the map thumbnail resource. By sending a PUT request, you can update the thumbnail information of a map.
Supported Methods:
- PUT: Update the thumbnail information of a map.
Supported output formats: RJSON, JSON, HTML, XML.

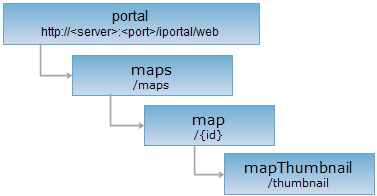

Resource hierarchy
HTTP Request Methods
Perform HTTP requests on the following URI. The rjson output format is used as an example, where supermapiportal is the server name.
http://supermapiportal:8190/iportal/web/maps/{id}/thumbnail.rjson
PUT Request
Update the thumbnail of the current map.
Request Parameters
To update the map thumbnail, the request body is the Base64 encoding of the map thumbnail image.
Response Structure
The returned resource representation structure is as follows:
| Field | Type | Description |
| succeed | boolean | Whether the thumbnail update was successful. |
| error | HttpError | Error information. This field is not returned if the update is successful. |
Response Example
Perform a PUT request on the mapThumbnail resource: http://localhost:8190/iportal/web/maps/418532371/thumbnail.rjson to update the thumbnail of the current map. The request body is as follows:
iVBORw0KGgoAAAANSUhEUgAAAQkAAACqCAYAAAC l7qQAAAFPklEQVR4Xu3WsRHDQAwEMav/ouUK7OAYLpQzIPizod93/fjI0CAwABRyS8DQIE/gmIhPdBgMBfAZHwQAgQEAlvgACBXcCfxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrHbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrBbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrHbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrBbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrBbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrBbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrBbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCIrBbmSSQEBCJxJktSWAXEIndziSBhIBIJM5sSQK7gEjsdiYJJAREInFmSxLYBURitzNJICEgEokzW5LALiASu51JAgkBkUic2ZIEdgGR2O1MEkgIiETizJYksAuIxG5nkkBCQCQSZ7YkgV1AJHY7kwQSAiKROLMlCewCzz5qkgCBgoBIFK5sRwIHAZE44BklUBAQicKV7UjgICASBzyjBAoCIlG4sh0JHARE4oBnlEBBQCQKV7YjgYOASBzwjBIoCIhE4cp2JHAQEIkDnlECBQGRKFzZjgQOAiJxwDNKoCAgEoUr25HAQUAkDnhGCRQERKJwZTsSOAiIxAHPKIGCwBfHMmJlhvppXAAAAABJRU5ErkJggg: =
The rjson format response is as follows:
{
"succeed": true
}
See
