Introduction

Demonstrate the layered color expression of the 3D slice cache (OSGB) layer.

Operation effect

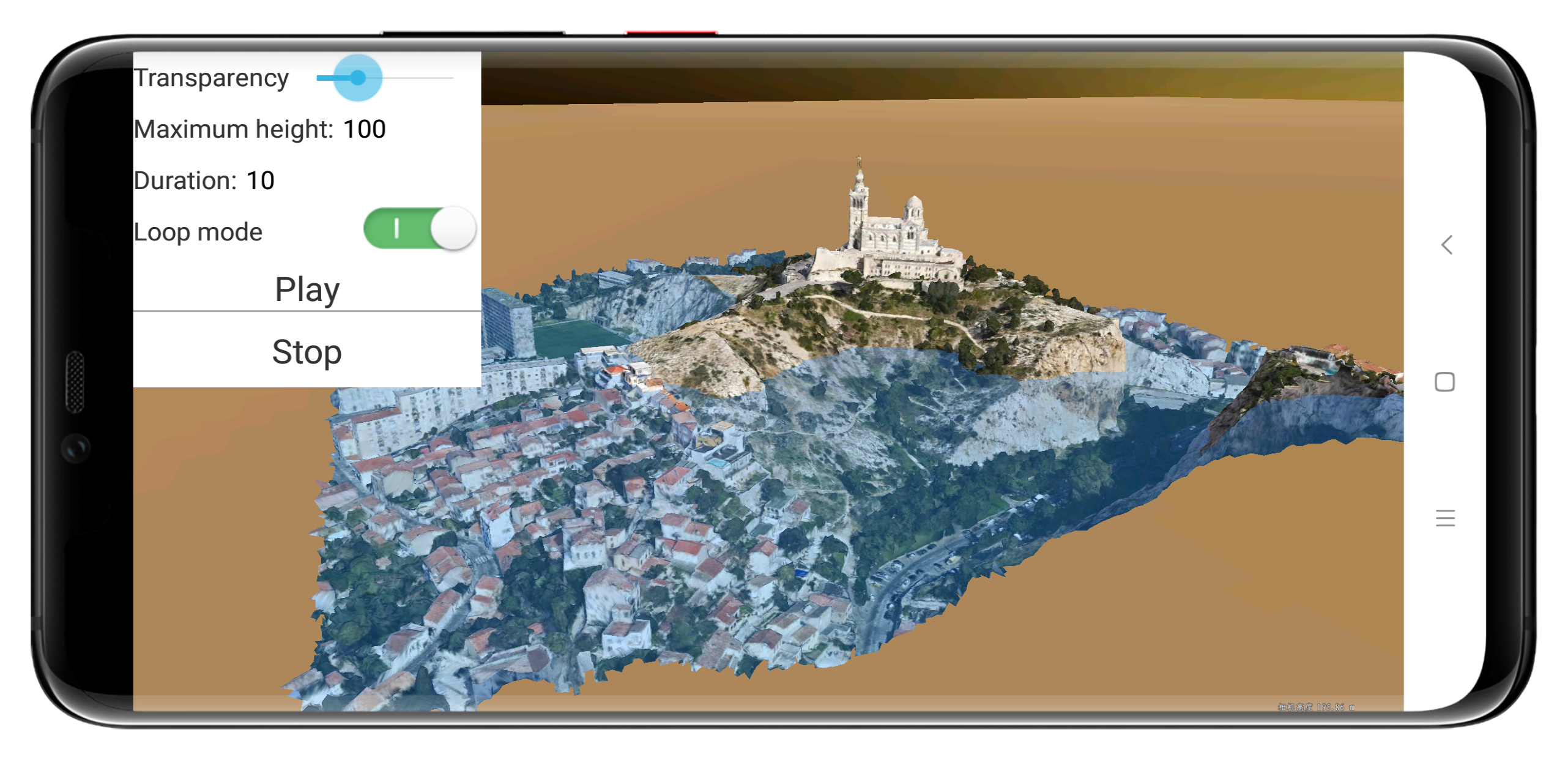

Figure: Hypsometric setting Operation Effect

Location

Android Studio

• Product package: Product package\SampleCode\SampleCode_AndroidStudio\AndroidStudioSampleCode\HypsometricSettingDemo

ADT

• Product package: Product package\SampleCode\SampleCode_ADT\HypsometricSettingDemo

Data

Storage location

• Product package: Product package\SampleData\MaSai

Deployment Location: mobile device internal storageSuperMap\data\MaSai

License

Offline license, copy the license file to the "mobile device internal storage\SuperMap\License" folder.

Library

jar
com.supermap.data.jar, com.supermap.realspace.jar
so
libimb.so, libgnustl_shared.so, libQt5Core.so, libQt5Gui.so, libQt5Svg.so, libQt5Widgets.so(Note: Starting from version 11.1, the last five so libraries need to be added.)

Key types/members

Control/Class	Method
SceneControl	getScene(), setSceneControlInitedHandler()
Scene	open(), getLayers(), setWorkspace()
Workspace	open()
WorkspaceConnectionInfo	setServer(), setType()
Environment	initialization(), getLicenseStatus()
LicenseStatus	isLicenseValid(), isLicenseExsit()
Layer3Ds	get()
Layer3DOSGBFile	setHypsometricSetting()
ColorDictionary	setColor()
HypsometricSetting	setDisplayMode(), setMinVisibleValue(), setMaxVisibleValue(), setOpacity(), setColorDictionary()

Enum	Value
WorkspaceType	DEFAULT, SXWU, SMWU
HypsometricSettingDisplayMode	HypsometricSettingDisplayModeNone, HypsometricSettingDisplayModeFace

Basic steps

1. Running the program, in accordance with the default parameters, realizing the effect of hypsometric setting and being dynamically submerged;
2. The transparency can be changed by manually dragging the progress bar;
3. The maximum water level can be set;
4. The time animation can be set;
5. The circulation mode can be changed as circulation or single;
6. Playing and stopping.
