Facility Network Analysis (facilityanalyst)
Introduction
Demonstrate upstream and downstream analysis, connectivity analysis and other network analysis.
Operation effect
 |

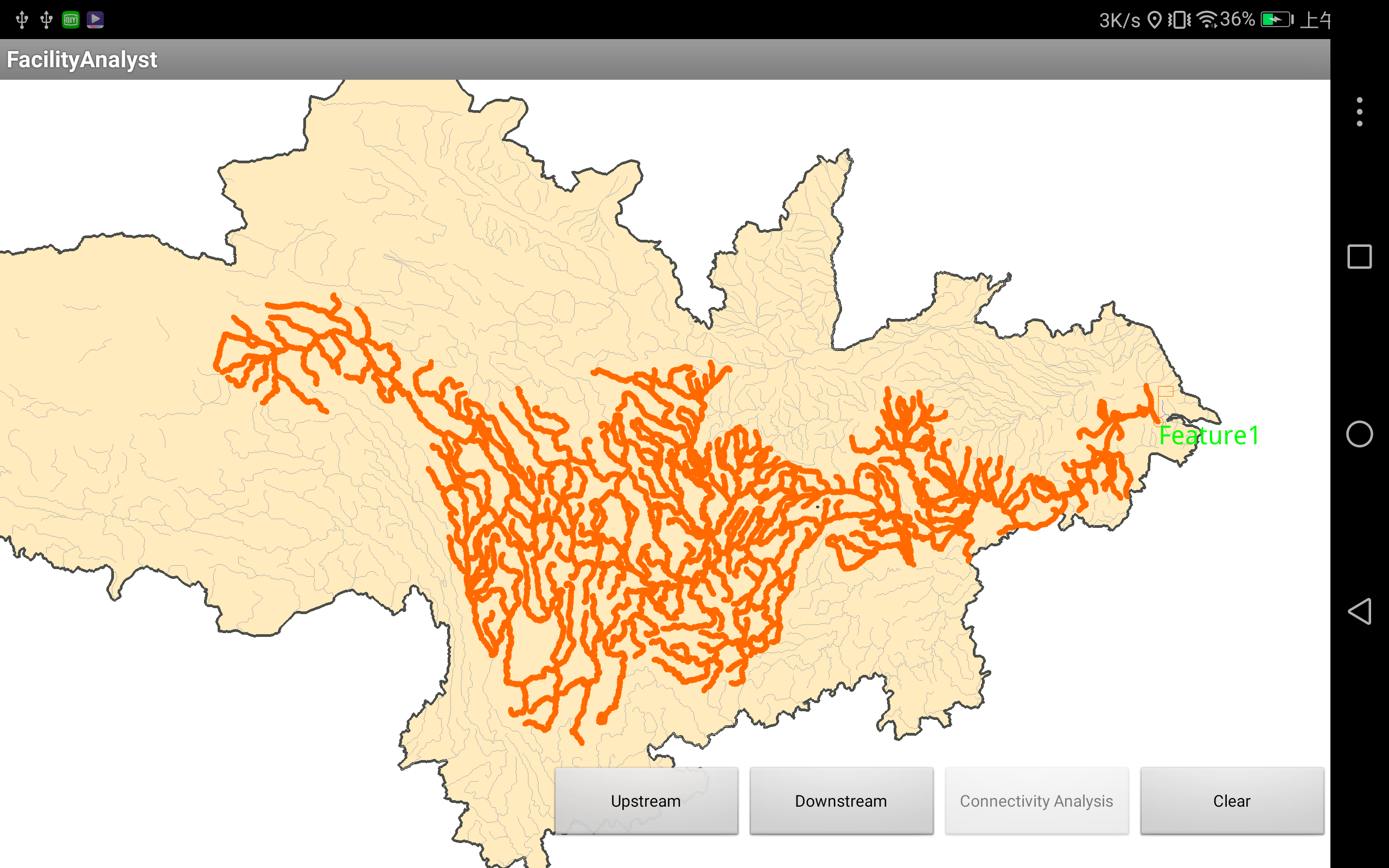

| Figure: Facility Network Analysis Operation Effect |
Location
Android Studio
- Product package: Product package\SampleCode\SampleCode_AndroidStudio\AndroidStudioSampleCode\facilityanalyst
ADT
- Product package: Product package\SampleCode\SampleCode_ADT\FacilityAnalyst
Data
Storage location
- Product package: Product package\SampleData\FacilityAnalyst
Deployment Location: mobile device internal storage\SampleData\FacilityAnalyst
License
Offline license, copy the license file to the "mobile device internal storage\SuperMap\License" folder.
Library
| jar |
|---|
| com.supermap.data.jar, com.supermap.mapping.jar, com.supermap.analyst.jar |
| so |
| libimb2d.so, libgnustl_shared.so, libQt5Core.so, libQt5Gui.so, libQt5Svg.so, libQt5Widgets.so(Note: Starting from version 11.1, the last five so libraries need to be added.) |
Key types/members
| Control/Class | Method |
|---|---|
| FacilityAnalystSetting | setContentView(), setNetworkDataset(), setEdgeIDField(), setNodeIDField(), setFNodeIDField(), setTNodeIDField(), setDirectionField() |
| FacilityAnalyst | setAnalystSetting(), load(), traceDownFromNode(), traceUpFromNode() |
Basic steps
- Long press on the map and add points;
- After adding points (add at least two points for connectivity analysis), click the relevant analysis button for analysis;
- Click the [Clear] button to clear the analysis content.
