Open iServer Service Layer

Instructions for use

The Open iServer Service Layer "command is used to Add to Scene the data in the published iServer service scene as a layer in the scene.

Operation steps

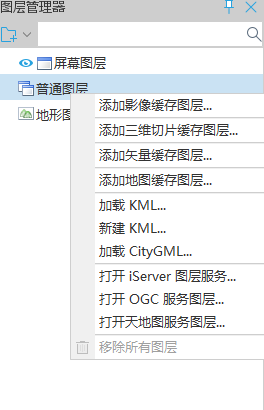

Figure: "Open iServer Service Layer.." option

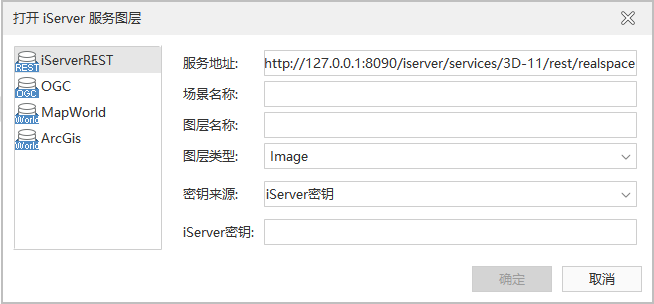

Figure: Open iServer Service Layers dialog box
  1. After you start the iServer service, in the open or create a scene, right-click the Layer Manager "Normal Layer" node, and select Open iServer Service Layer in the Context Menu to pop up the Open iServer Service Layer dialog box.
  2. Server Address: An example of Server Address for Vector Layer is given by default. You can enter the published address of the iServer service layer to be opened in the text box according to the example. If the Layer type "is set to Map, Server Address needs to be set to the Layer Name level, for example, the layer to be opened is World, and the Layer type is Map. The server address needs to be filled in with "http://localhost:8090/iserver/services/map-world/rest/maps/World"; If The Layer type "is of other types, the Server Address must be set to the root node of the service, for example, the Layer Type is Vector. The server address needs to be set to "http://localhost:8090/iserver/services/3D-Pipe3D/rest/realspace".
  3. Scene Name: Enter the service Scene Name: published via iServer.
  4. Layer Name: Enter the layer name of the service published through the iServer.
  5. Layer Type: Select the type of iServer service layer to open. The supported layer types are: Image, KML, Map, Vector, and OSGB. The specific description is as follows:
    • Image: indicates that the sub-layer type of the open publishing layer is Image Layer.
    • KML: indicates that the sub-layer type of the open publishing layer is KML layer.
    • Map: indicates to open the published map layer. Server Address needs to fill in the layer link published to the iServer kaug service.
    • Vector: indicates that the sub-layer type of the open publishing layer is Vector Layer.
    • OSGB: indicates that the sub-layer type of the open publishing layer is OSGB layer.
  6. Click OK to display the data as a 3D layer on the simulated earth in the scene. At the same time, a 3D layer node will be added to the "Normal Layer" sub-node in Layer Manager. This node corresponds to the iServer service layer just opened.
