Merge Model

Instructions for use

Merge Model includes merging multiple objects and merging children of the model. When the BIM model is built, the BIMMerge Model is regarded as a model, which effectively avoids the unintentional modification of the size in the operation process and reduces the quality and efficiency of the BIM model.

Operation steps

  1. Right-click Datasource in Workspace Manager and select Open File Datasource "to open the Datasource containing the BIMModel Dataest.
  2. Select Model Dataest, right-click the Add to New Spherical Scene ", select the model layer in Layer Manager, and right-click the Jump to Layer".
  3. Click the Model Edit Drop-down Button in the Model Operation group of the 3D Geographic Design tab and select Merge Model "from the drop-down menu. The Merge Model "dialog box pops up, as shown in the following figure:

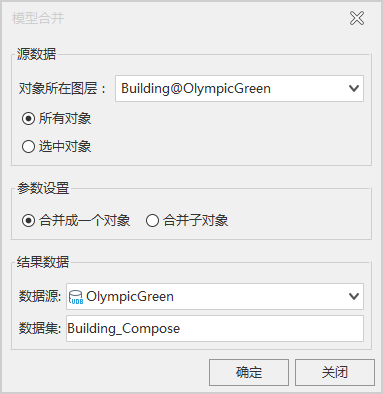

    4. Figure: Merge Model "Dialog Box
  4. Source data:
    • Object layer Determines the Model object for the merge. Click the drop-down arrow of the Model Layer combo box to select the layer on which to Merge Model.
    • All Objects: All Model Objects in this layer participate in the Merge Model operation.
    • Select Object: In this layer, only the selected Model Object participates in the Merge Model operation. Check this option to ensure that a Model Object has been selected in the scene. Left Mouse + Shift allows you to select multiple Model Objects in the scene.
  5. Parameter Settings: single-select Merge Model mode, including Compose as one object and Compose SubObject.
    • Compose as one object: Combine the Operation objects into one object.
    • Compose SubObject: merges the child objects of the Operation object.
  6. Set Result Data Storage Parameters, including Datasource selection and Dataset naming.
    • Datasource: Datasource designation stored by the resulting model after the Merge Model. Mouse click the drop-down arrow of the Data source combo box to select.
    • Dataset: The name of the Result Dataset. The default is Model ComposeResult. The Dataset Name can be customized.
  7. Click the Save button to complete the Merge Model operation.
