View Model Object Properties

Function Description

Select a model dataset object in the scene, right-click, and choose the "Properties" command from the context menu to open the "Properties" panel. The "Properties" panel displays detailed attribute information of the selected model object, including "Object Properties", "Spatial Information", and "Model Information". Click the corresponding tab to view different categories of model object information.

Function Entry

  • Scene window -> Model object right-click menu -> Properties button

Parameter Description

Object Properties

After opening the Properties window, the "Object Properties" panel is displayed by default. This panel mainly shows the complete fields and field values in the attribute table of the object. The detail and completeness of the displayed attribute fields can be controlled by hiding details and hiding system fields.

  • Edit Properties: Double-click an editable field value to modify the specific field value. After editing, press the Enter key.
  • Apply and Reset Changes: Modifications are automatically applied to the model object by default. You can also uncheck the Auto Apply check box. Click the Apply button to apply changes. Click the Reset button to revert changes and restore the initial values.
  • Hide Details: This check box sets whether to display or hide detailed information fields. It is checked by default, meaning that attribute information of other fields is hidden and only the field alias and field value fields are displayed. Unchecking it will display additional fields: field name, field type, and whether the field is required.
  • Hide System Fields: This check box sets whether to display or hide attribute information of system fields. It is checked by default, meaning that all system field attribute information is hidden to avoid cluttering the view when there are many system fields. Unchecking it will display all system field information.

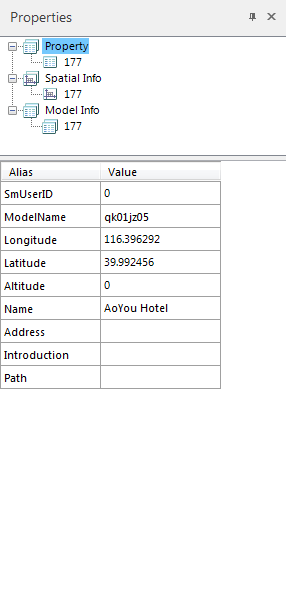

    Figure: "Object Properties" Panel

Spatial Information

Click the "Spatial Information" tab to view the spatial information of the model object, mainly including basic information, bounding rectangle range, and location information. The Copy button allows you to quickly copy related attribute fields and field values. The specific content is shown in the figure below:

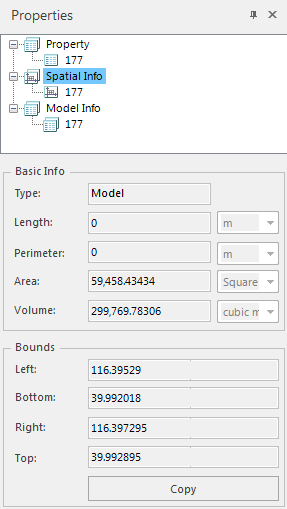

Figure: "Spatial Information" Panel of the Object Properties

Model Information

Click the "Model Information" tab to view the model information of the model object, mainly including the number of model vertices, number of triangles, sub-object information, and material information, as shown in the figure below:

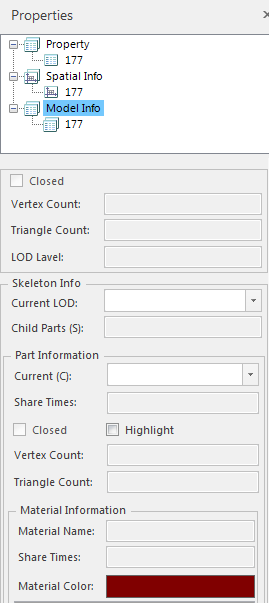

Figure: "Model Information" Panel of the Object Properties

Currently, the following information can be changed or edited for the model:

  • Current LOD: Click the drop-down box to select the LOD level of the model.
  • Current Sub-Object: Click the drop-down box to select the currently selected sub-object. Check the "Highlight" check box to highlight the selected sub-object in red.
  • Highlight: Whether to highlight the currently selected sub-object. If checked, the selected sub-object will be highlighted in red.
