Function Description

The Circle Center Adjustment function adjusts the endpoints of the enclosed line objects to the center of the drawn circle and connects these line objects at the center point. Note: The connection is only at the nodes and does not form a single object.

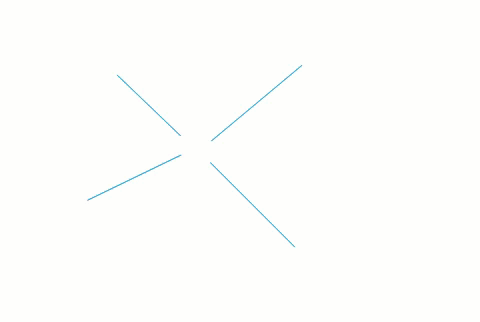

As shown in the figure below, Circle Center Adjustment deletes the endpoints of the line objects within the circle and connects the endpoints of the line objects at the center point.

• The Circle Center Adjustment function is applicable to line layers and CAD layers.
• When the selection range is large, the Circle Center Adjustment operation does not process line objects that completely fall within the temporarily drawn circle.

Notes:

Circle Center Adjustment only adjusts the endpoints of line objects, not all nodes of the selected line objects.

Function Entry

• Edit Data tab -> Feature Editing group -> Line editing -> Endpoint editing -> Circle Center Adjustment

Operation Instructions

1. When the layer is editable, in the Edit Data tab under the Line editing drop-down menu, click the Circle Center Adjustment button in the Endpoint editing group to perform the endpoint adjustment operation.
2. Move the mouse to the map, and the coordinates of the circle center point are displayed at the bottom right of the mouse. Draw a temporary circle on the map so that the nodes participating in the adjustment operation fall exactly within the circle.
3. Click the left mouse button to perform the adjustment operation on the selected nodes.
4. Click the right mouse button to cancel the current operation.
