Extract Outline
Instructions for use

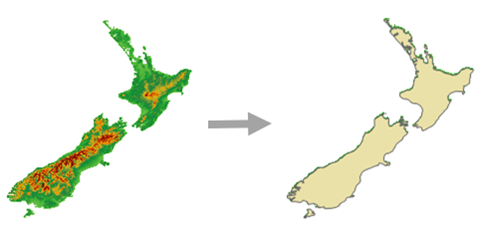

Extracts the contour of the valid value range of an image, raster, or Mosaic Dataset to generate a new line/Region Dataset.
Parameter Description
| Parameter name | Default | Parameter description | Parameter Type |
|---|---|---|---|
| Source Raster Data | Set up the Source Dataset and the Datasource where it is located. Support Image, Grid and Mosaic Dataset. | DatasetGrid | |
| Profile type | Specify the Object Type of the generated data. Two types of line and surface are supported. | String | |
| Target Datasource | Specifies the Datasource where the Dataset storing the Extract Outline results is located | Datasource | |
| Result Dataset name | Specify the Resulting dataset name. | String |
Output Result
| Parameter name | Parameter description | Parameter Type |
|---|---|---|
| Result Raster Dataset | Result Raster Dataset | DatasetGrid |
