Pipeline Attributes -> Line Data
Instructions for use

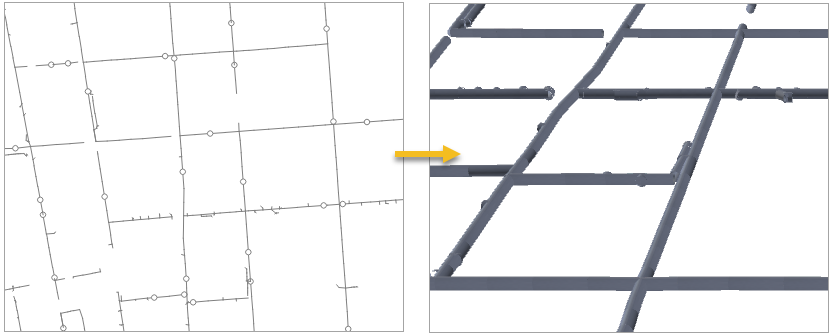

Generate two-dimensional or three-dimensional line data based on the pipeline attribute table information, creating line attribute tables and point attribute tables.
Parameter Description
| Parameter name | Default | Parameter description | Parameter Type |
|---|---|---|---|
| Source Datasource | Source Datasource | Datasource | |
| Source Dataset | Specify the Source Dataset | DatasetVector | |
| Pipeline start field | Specify the pipeline start field | String | |
| Pipeline end field | Specify the pipeline end field | String | |
| Tube point propertiesData source | Specifies the Datasource where the pipe point attribute Dataset is located | Datasource | |
| Pipe point attribute Dataset | Specifies the Dataset where the tube point attribute resides | DatasetVector | |
| Pipe point code field | Specify the tube point code field | String | |
| X coordinate | Specify the X coordinate field | String | |
| Y coordinate | Specify the Y coordinate field | String | |
| Z coordinate | Specifies the Z coordinate field used to generate the 3D Line Dataset | String | |
| Result Datasource | Specifies the Datasource that holds the Result Dataset | Datasource | |
| Result Dataset | result_tabularTo3DLine | The specified Resulting dataset name. | String |
Output Result
| Parameter name | Parameter description | Parameter Type |
|---|---|---|
| Line Dataset | Result Line Dataset | DatasetVector |
