Instructions for use

Through object query, enter Object Abbreviation to query whether the definition of the object exists in the current software, or query the relevant definition of a certain object, including code, included field, relevant explanation, etc.

It can be used to check whether the relevant contents of the object are correct.

Operation steps

1. Click Chart Design-> Object Query Extension-> Object Query to pop up the Object Query dialog box.
2. Enter the name of the object in the search box to query the relevant information.

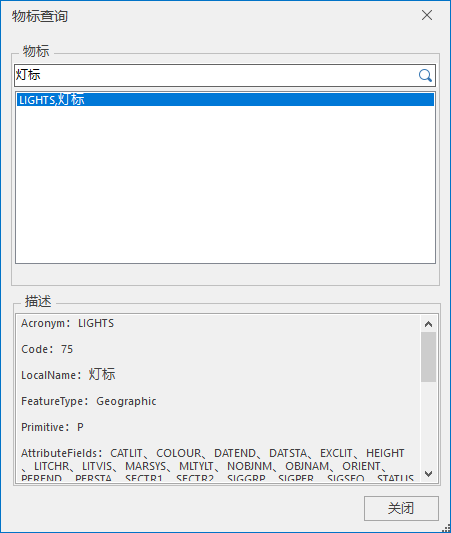

   As shown in the following figure: Search for Lamp. Details about Lamp are displayed in the Description box.
