Fill symbol description

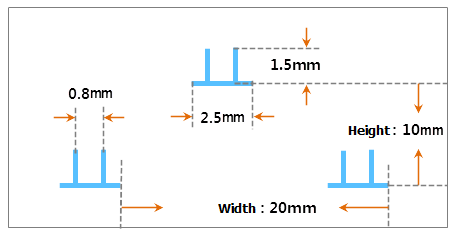

This demo is to make a fill symbol shown in the following figure. The following figure labels the size of the fill symbol. This fill symbol consists of a child fill of the symbol fill type.

The fill symbol design

How to make it?

Based on the above marker symbol design, the steps for making the fill symbol is as follows.

1. When creating a fill symbol, the system will add an empty symbol fill automatically. If not, create a child fill, and set the child fill as the symbol fill type;
2. Select the corresponding symbol for the symbol fill, and set the symbol size;
3. Construct font fill effects using the Generate Pattern. For the detailed information of distribution styles of fill symbols, please see: the introductions to the Distribution of Symbols in the Composition of Fill Symbols.
