Marker symbol description

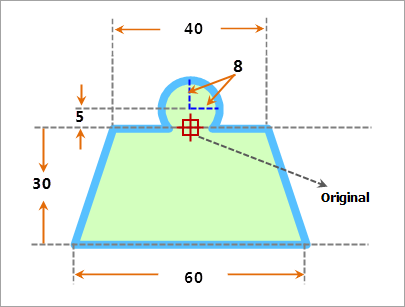

This demo is to make a marker symbol shown in the following figure. The following figure labels the size of the marker symbol. This marker symbol consists of region objects.

The marker symbol design

How to make it?

Based on the above marker symbol design, the steps for making the marker symbol is as follows.

1. Draw a regular trapezoid. Since the function of directly drawing a trapezoid is not available in the marker symbol editor, you can draw by other methods. Here, we draw a rectangle and then use the clip function to get a regular trapezoid;
2. Draw a circle with the radius of 8, and the position of the circle is consistent with that is required in the design;
3. Implement the union of the trapezoid and circle to make it to be a region stroke, and then set the border style and fill style of this region stroke.
