Marker symbol description

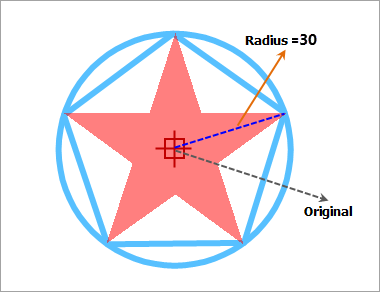

This demo is to make a marker symbol shown in the following figure. The following figure labels the size of the marker symbol. This marker symbol consists of lines of a regular pentagon and its circumscribed circle as well as a pentagram region object.

The marker symbol design

How to make it?

Based on the above marker symbol design, the steps for making the marker symbol is as follows.

1. Draw a regular pentagon and its circumscribed circle. The function of drawing a regular polygon and its circumscribed circle is available in the marker symbol editor, which is convenient to draw this kind of object;
2. Draw a pentagram region object;
3. Set the style of each stroke in the marker symbol, in which styles of line strokes are set in advance by the method of predefining here.
